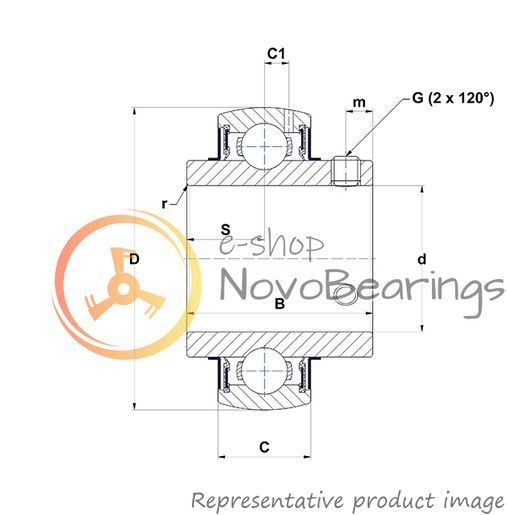

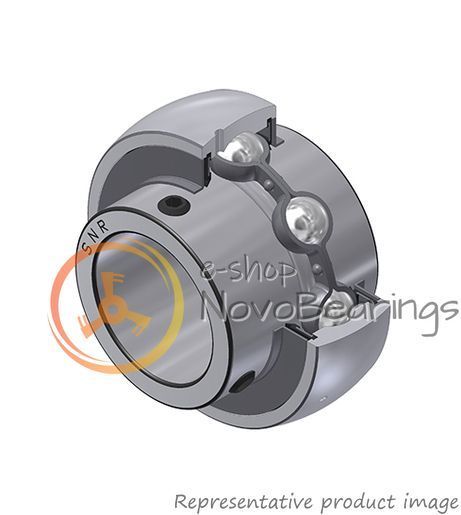

Single row sealed insert ball bearing with a spherical surface of the outer (outer) ring SNR UC318G2 for cylindrical shafts, with a wide inner ring and a stop pin. Contact seal with additional protective plate (oil deflector) on both sides. Mounting to the shaft: locking screw M16x1.5

Rated dynamic load 143 kN, calculated static load 108 kN. Use temperature from -20 °C to 100 °C
Usually installed in a housing, it is able to compensate for shaft misalignments relative to the bearing housing due to the spherical design of the outer ring.
Two rows of lubrication holes allow this bearing to be installed in both the “European” series housing (ISO) and the “Asian” series housing (JIS).
