Features
Brand SNR
Designation NUP211EG15

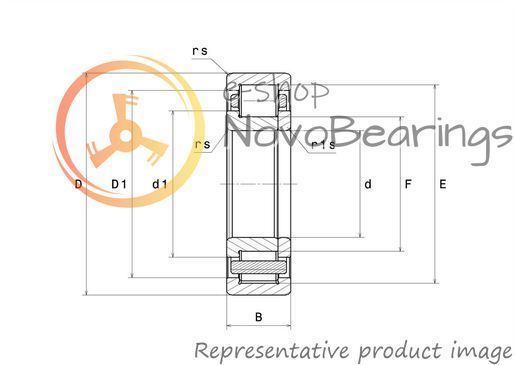

Dimensions [d x D x W] 55х100х21 mm.
Bore diameter (d) 2.165 in. / 55 mm.
Outside diameter (D) 3.937 in. / 100 mm.
Width (B) 0.827 in. / 21 mm.
Weight 0.3143 lbs. / 0.693 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Polymer
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

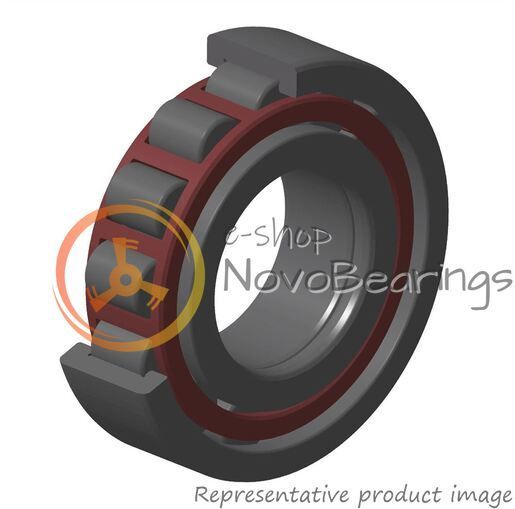

Single-row open radial roller bearing SNR NUP211EG15 with dimensions 55*100*21 mm.
It has a split design and a cage made of glass-filled polyamide. The outer ring has two guide flanges, the inner ring has one flange and one removable flange in the form of a free ring. Designed to withstand one-sided radial load.

The maximum rotation speed is 8300 rpm. Design dynamic load 83.1 kN, design static load 94.2 kN. Normal axial clearance.
A roller bearing of this design provides two-way fixation of the shaft, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.

A new review or comment
Sign in with
Rate this item
Share

NUP211EG15 SNR Bearing (55х100х21 mm.)

Out of stock
SKU: NUP211EG15SNR55X100X21!#_
Price upon request
