Features
Brand SNR
Designation NJ320EG15

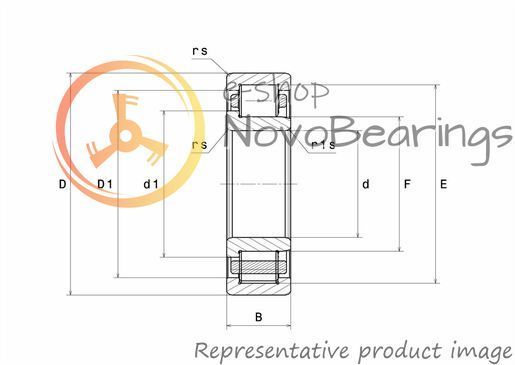

Dimensions [d x D x W] 100х215х47 mm.
Bore diameter (d) 3.937 in. / 100 mm.
Outside diameter (D) 8.465 in. / 215 mm.
Width (B) 1.85 in. / 47 mm.
Weight 3.4518 lbs. / 7.61 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Polymer
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

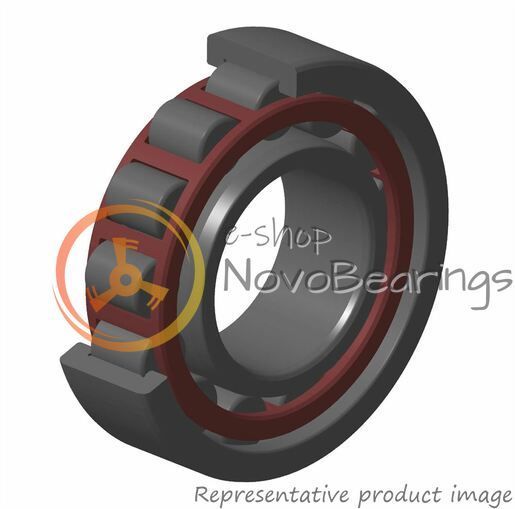

Single-row open radial roller bearing SNR NJ320EG15 with dimensions 100*215*47 mm.
It has a split design and a cage made of glass-filled polyamide. The outer ring has two guide flanges, the inner ring has one flange. Designed to withstand one-sided radial load.

The maximum rotation speed is 3800 rpm. Design dynamic load 391 kN, design static load 434 kN. Normal axial clearance.
A roller bearing of this design provides one-way fixation of the shaft, can accommodate axial displacement of the shaft relative to the housing in only one direction, and can withstand significant axial loads and relatively high rotation speeds. Well suited for use in harsh conditions.
