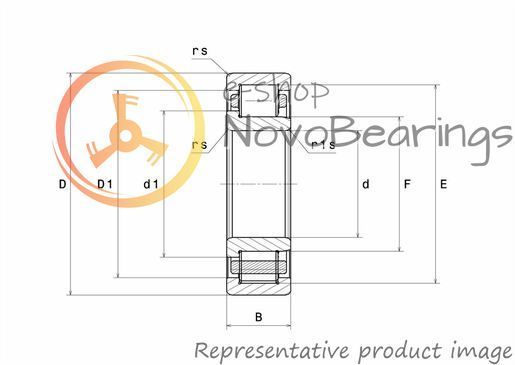

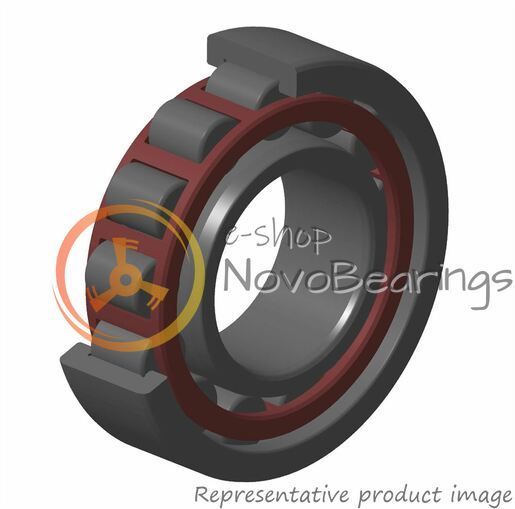

Single-row open radial roller bearing SNR NJ313EG15 with dimensions 65*140*33 mm.
It has a split design and a cage made of glass-filled polyamide. The outer ring has two guide flanges, the inner ring has one flange. Designed to withstand one-sided radial load.
The maximum rotation speed is 6000 rpm. Design dynamic load 182 kN, design static load 193 kN. Normal axial clearance.

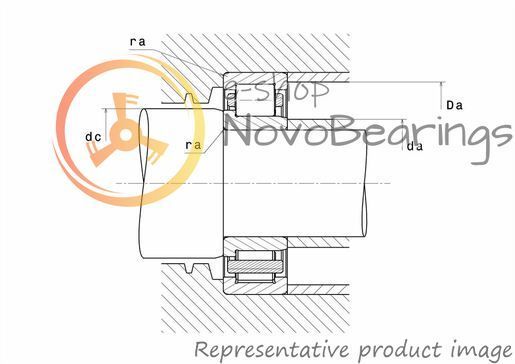

A roller bearing of this design provides one-way fixation of the shaft, can accommodate axial displacement of the shaft relative to the housing in only one direction, and can withstand significant axial loads and relatively high rotation speeds. Well suited for use in harsh conditions.
