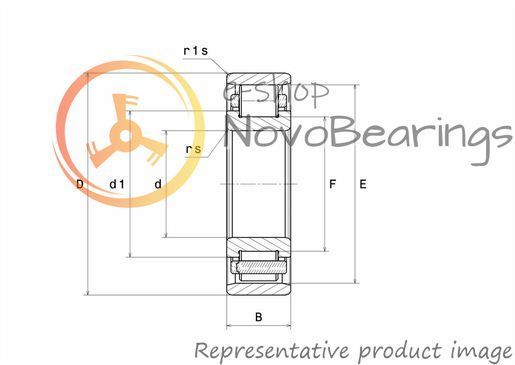

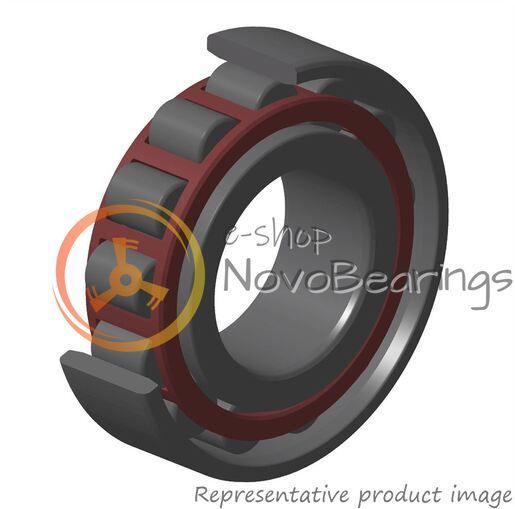

Single-row open radial roller bearing SNR N313EG15C3 with dimensions 65*140*33 mm.
It has a split design and a cage made of glass-filled polyamide. The inner ring has two guide flanges, the outer ring has no flanges. Designed to withstand one-sided radial load.
The maximum rotation speed is 6000 rpm. Design dynamic load 182 kN, design static load 193 kN. Increased axial clearance (C3/J30).
A roller bearing of this design is capable of accepting axial displacement of the shaft relative to the housing in two directions, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.
