Features
Brand SNR
Designation N305EG15

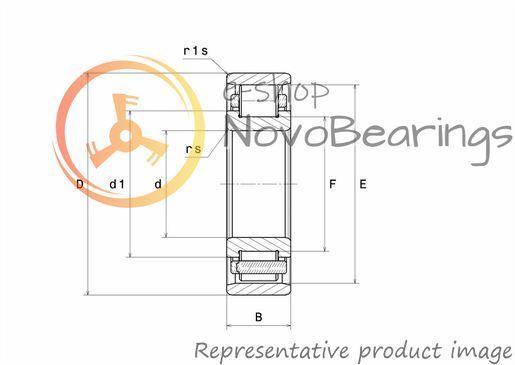

Dimensions [d x D x W] 25х62х17 mm.
Bore diameter (d) 0.984 in. / 25 mm.
Outside diameter (D) 2.441 in. / 62 mm.
Width (B) 0.669 in. / 17 mm.
Weight 0.1098 lbs. / 0.242 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Polymer
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

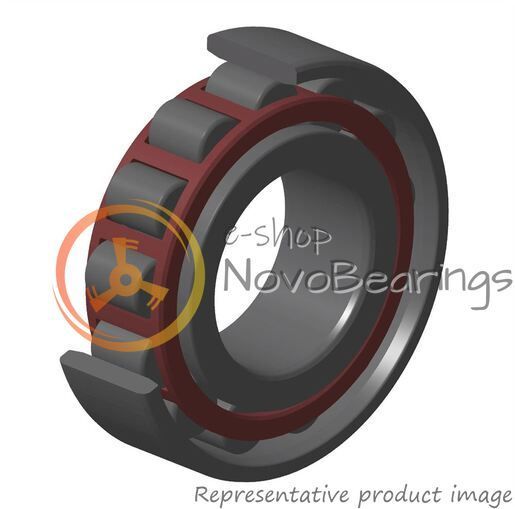

Single-row open radial roller bearing SNR N305EG15 with dimensions 25*62*17 mm.
It has a split design and a cage made of glass-filled polyamide. The inner ring has two guide flanges, the outer ring has no flanges. Designed to withstand one-sided radial load.

The maximum rotation speed is 14000 rpm. Design dynamic load 40.6 kN, design static load 36.3 kN. Normal axial clearance.
A roller bearing of this design is capable of accepting axial displacement of the shaft relative to the housing in two directions, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.
