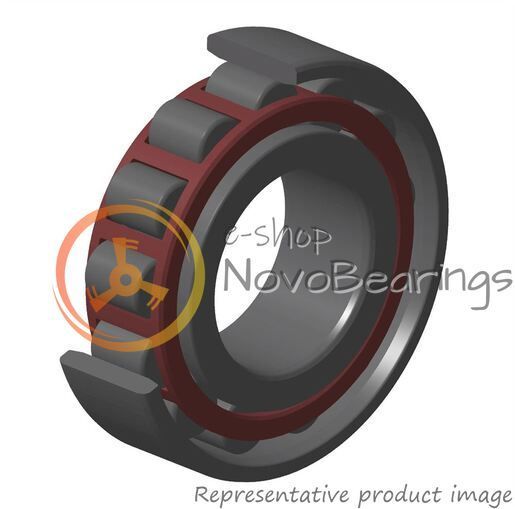

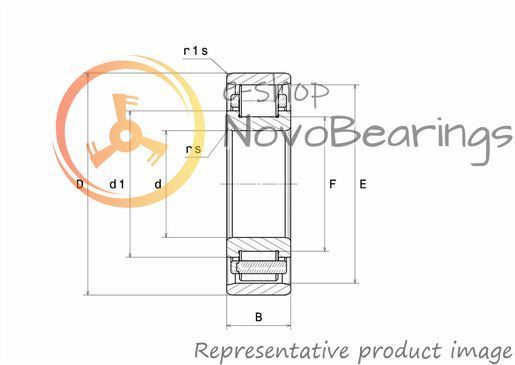

Single-row open radial roller bearing SNR N304EG15 with dimensions 20*52*15 mm.
It has a split design and a cage made of glass-filled polyamide. The inner ring has two guide flanges, the outer ring has no flanges. Designed to withstand one-sided radial load.
The maximum rotation speed is 17000 rpm. Design dynamic load 30.7 kN, design static load 26 kN. Normal axial clearance.
A roller bearing of this design is capable of accepting axial displacement of the shaft relative to the housing in two directions, withstands significant axial loads and a relatively high rotation speed. Well suited for use in harsh conditions.
