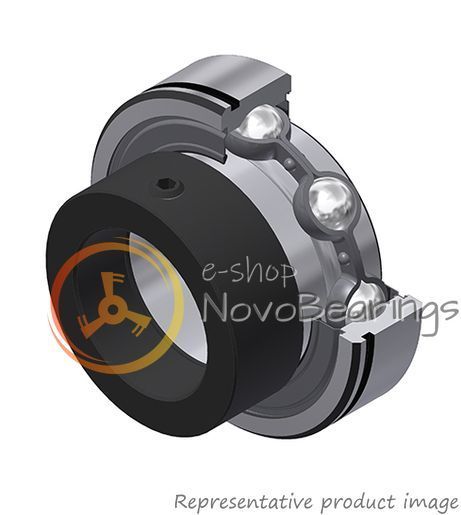

Single row sealed insert ball bearing with a cylindrical surface of the outer (outer) ring SNR CES209 for cylindrical shafts. With a wide inner ring protruding to one side. With grooves for circlips on the outer race. Single lip contact seal on both sides. Fastening to the shaft: eccentric locking ring with M8x1 screw.
Rated dynamic load 31.85 kN, calculated static load 20.8 kN. Use temperature -20°C to 100°C
Usually installed in a housing.

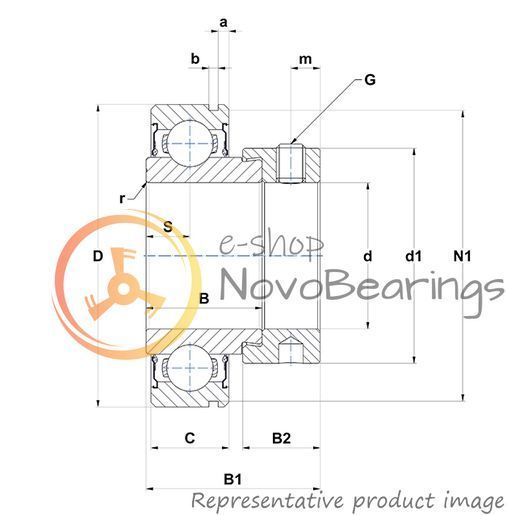

Eccentric snap ring width (B2): 18.3 mm.
Inner ring/inner race width (B): 30.2 mm.
Total bearing width including eccentric snap ring (B1 ): 43.7 mm.
