  • 6324M SNR Bearing (120х260х55 mm.)
  • 6324M SNR Bearing (120х260х55 mm.)
  • 6324M SNR Bearing (120х260х55 mm.)
Features
Brand SNR
Designation 6324M

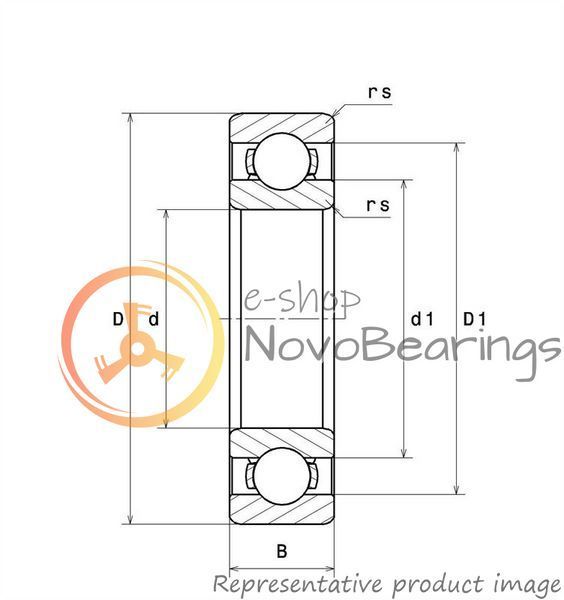

Dimensions [d x D x W] 120х260х55 mm.
Bore diameter (d) 4.724 in. / 120 mm.
Outside diameter (D) 10.236 in. / 260 mm.
Width (B) 2.165 in. / 55 mm.
Weight 5.806 lbs. / 12.8 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Machined brass
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

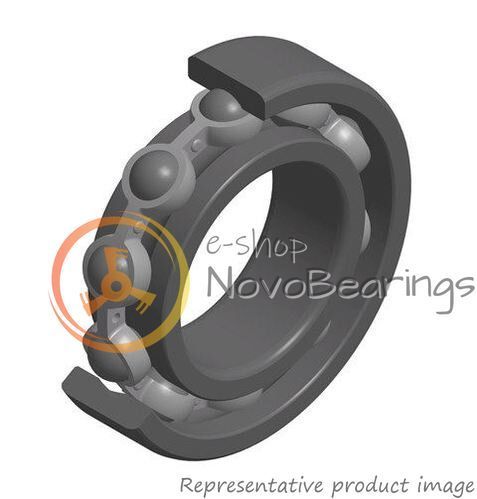

Single row open deep groove ball bearing SNR 6324M.

Limit rotation speed 3000 rpm. Design dynamic load 212 kN, design static load 190 kN.
