  • 6309FT150ZZ SNR Bearing (45х100х25 mm.)
  • 6309FT150ZZ SNR Bearing (45х100х25 mm.)
  • 6309FT150ZZ SNR Bearing (45х100х25 mm.)
Features
Brand SNR
Designation 6309FT150ZZ

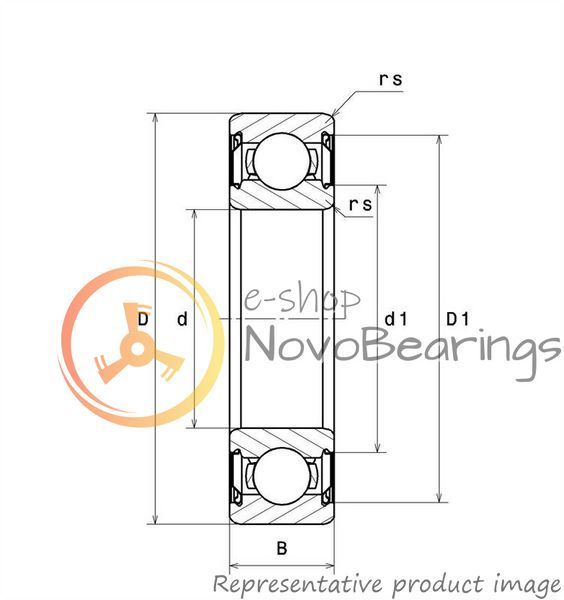

Dimensions [d x D x W] 45х100х25 mm.
Bore diameter (d) 1.772 in. / 45 mm.
Outside diameter (D) 3.937 in. / 100 mm.
Width (B) 0.984 in. / 25 mm.
Weight 0.3765 lbs. / 0.83 kg.
Sealing Shield on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

Single row sealed high-temperature deep groove ball bearing SNR 6309FT150ZZ TOPLINE series for use at high temperatures up to +150°C.

Limit rotation speed 9200 rpm. Design dynamic load 52.3 kN, design static load 31.7 kN.

Does not require re-lubrication throughout its service life.
Adapted for use at high temperatures, for example in fans, electric motors and conveyors. Special lubricant ensures a maximum operating temperature of +150°C (at peak).

A new review or comment
Sign in with
Rate this item
Share

6309FT150ZZ SNR Bearing (45х100х25 mm.)

Out of stock
SKU: 6309FT150ZZSNR45X100X25!#_
Price upon request
