Features

Brand	SNR
Designation	6214N

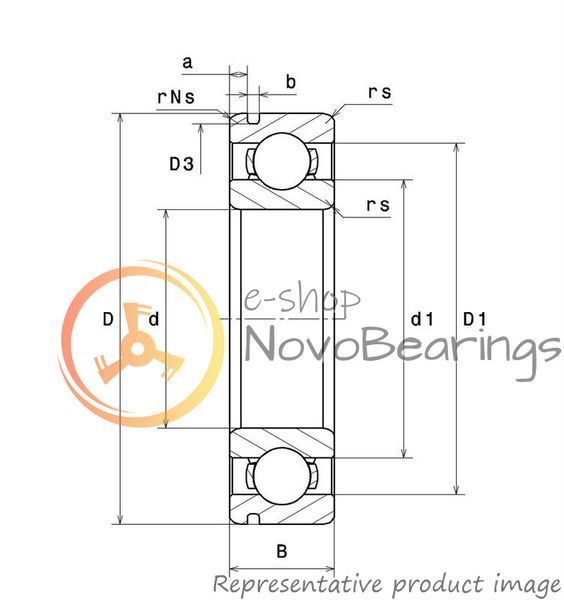

Dimensions [d x D x W]	70х125х24 mm.
Bore diameter (d)	2.756 in. / 70 mm.
Outside diameter (D)	4.921 in. / 125 mm.
Width (B)	0.945 in. / 24 mm.
Weight	0.4763 lbs. / 1.05 kg.
Sealing	Without / Open
Bearing Material	Bearing steel
Cage	Sheet metal
Radial internal clearance	Normal
Tolerance class	Normal
Number of rows	1
Outer ring type	Cylindrical
Bore type	Cylindrical
Series	Metric

Description

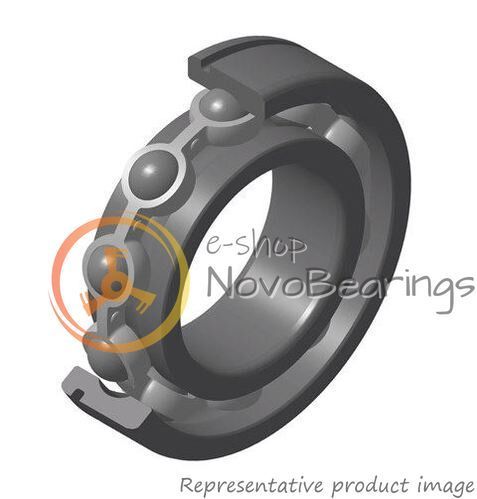

Single row open deep groove ball bearing SNR 6214N with a circlip groove on the outer ring.

The maximum rotation speed is 5900 rpm. Design dynamic load 62 kN, design static load 44 kN.

A new review or comment

Sign in with

Rate this item

Share

6214N SNR Bearing (70х125х24 mm.)

Out of stock

SKU: 6214NSNR70X125X24!#_

Leave your feedback

Price upon request

%
