  • 6208E SNR Bearing (40х80х18 mm.)
  • 6208E SNR Bearing (40х80х18 mm.)
  • 6208E SNR Bearing (40х80х18 mm.)
Features
Brand SNR
Designation 6208E

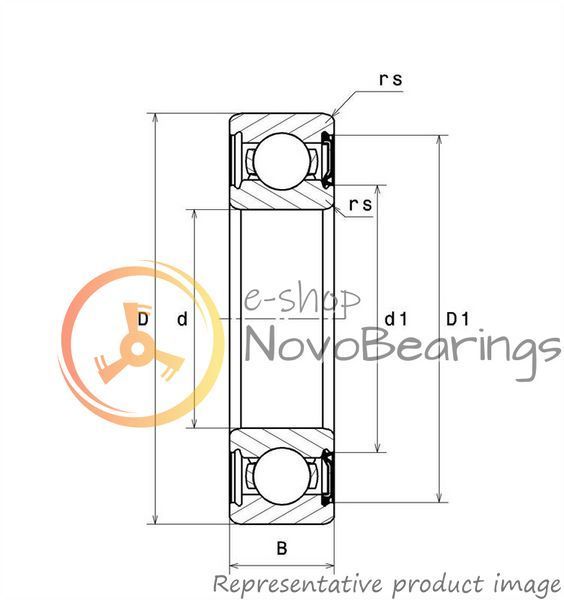

Dimensions [d x D x W] 40х80х18 mm.
Bore diameter (d) 1.575 in. / 40 mm.
Outside diameter (D) 3.15 in. / 80 mm.
Width (B) 0.709 in. / 18 mm.
Weight 0.1692 lbs. / 0.373 kg.
Sealing Seal on one side
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

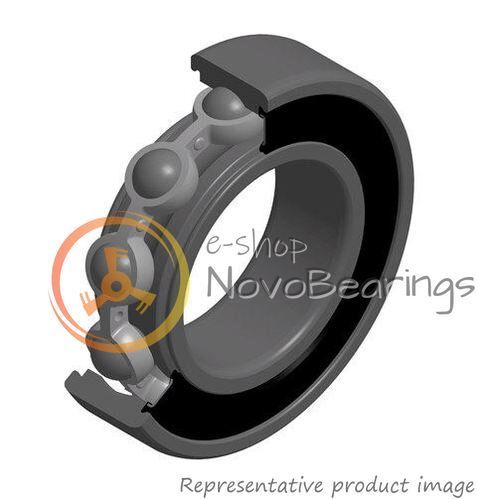

Single row semi-closed deep groove ball bearing SNR 6208E.

Limit rotation speed 5300 rpm. Design dynamic load 29 kN, design static load 17.9 kN.
