  • 6207SEE SNR Bearing (35х72х17 mm.)
  • 6207SEE SNR Bearing (35х72х17 mm.)
Features
Brand SNR
Designation 6207SEE

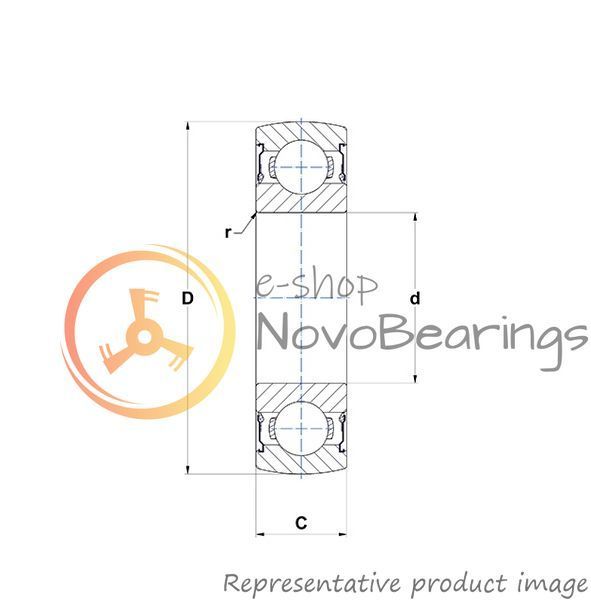

Dimensions [d x D x W] 35х72х17 mm.
Bore diameter (d) 1.378 in. / 35 mm.
Outside diameter (D) 2.835 in. / 72 mm.
Width (B) 0.669 in. / 17 mm.
OR Width (C) 0.669 in. / 17 mm.
IR Width (B) 0.669 in. / 17 mm.
Weight 0.1352 lbs. / 0.298 kg.
Sealing Seal on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Spherical
Bore type Cylindrical
Series Metric
Description

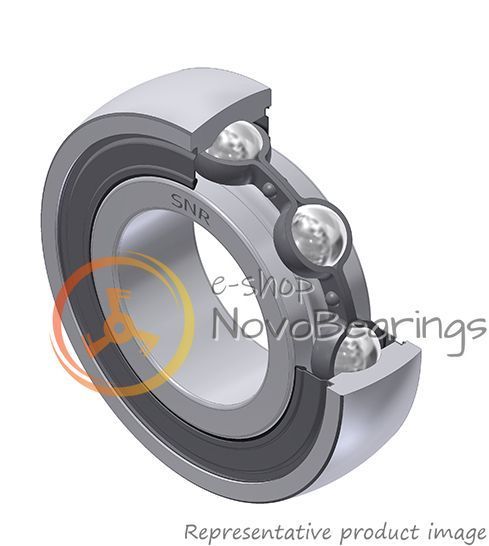

Single row sealed insert ball bearing with a spherical surface of the outer (outer) ring SNR 6207.S.EE with equally wide inner and outer rings, for cylindrical shafts. Fastening to the shaft: interference.

Designed dynamic load 25.5 kN, calculated static load 15.2 kN. Operating temperature from -20 °C to +100 °C
Usually installed in a housing, able to compensate for shaft misalignments relative to the bearing housing due to the spherical design of the outer ring.
Alternative designations: 1726207-2RS, 1726207-2RS1, CS207LLU, CS207

A new review or comment
Sign in with
Rate this item
Share

6207SEE SNR Bearing (35х72х17 mm.)

Out of stock
SKU: 6207SEESNR35X72X17!#_
Price upon request
