Features

Brand	SNR
Designation	6207N
Dimensions [d x D x W]	35х72х17 mm.
Bore diameter (d)	1.378 in. / 35 mm.
Outside diameter (D)	2.835 in. / 72 mm.
Width (B)	0.669 in. / 17 mm.
Weight	0.1225 lbs. / 0.27 kg.
Sealing	Without / Open
Bearing Material	Bearing steel
Cage	Sheet metal
Radial internal clearance	Normal
Tolerance class	Normal
Number of rows	1
Outer ring type	Cylindrical
Bore type	Cylindrical
Series	Metric

Description

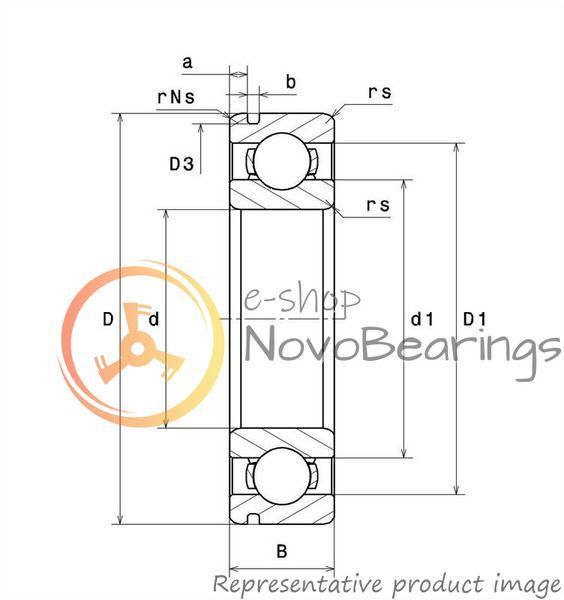

Single row open deep groove ball bearing SNR 6207N with a circlip groove on the outer ring.

Limit rotation speed 9000 rpm. Design dynamic load 25.5 kN, design static load 15.3 kN.
