  • 6205NR SNR Bearing (25х52х15 mm.)
  • 6205NR SNR Bearing (25х52х15 mm.)
  • 6205NR SNR Bearing (25х52х15 mm.)
  • 6205NR SNR Bearing (25х52х15 mm.)
Features
Brand SNR
Designation 6205NR

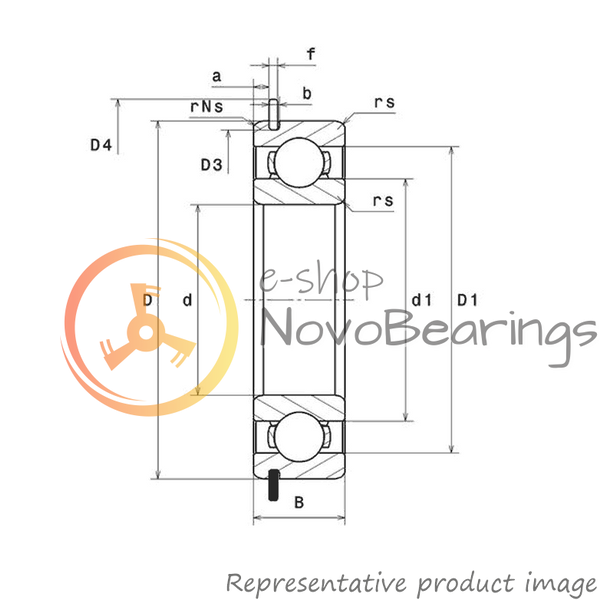

Dimensions [d x D x W] 25х52х15 mm.
Bore diameter (d) 0.984 in. / 25 mm.
Outside diameter (D) 2.047 in. / 52 mm.
Width (B) 0.591 in. / 15 mm.
Weight 0.059 lbs. / 0.13 kg.
Sealing Without / Open
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical with snap ring
Bore type Cylindrical
Series Metric
Description

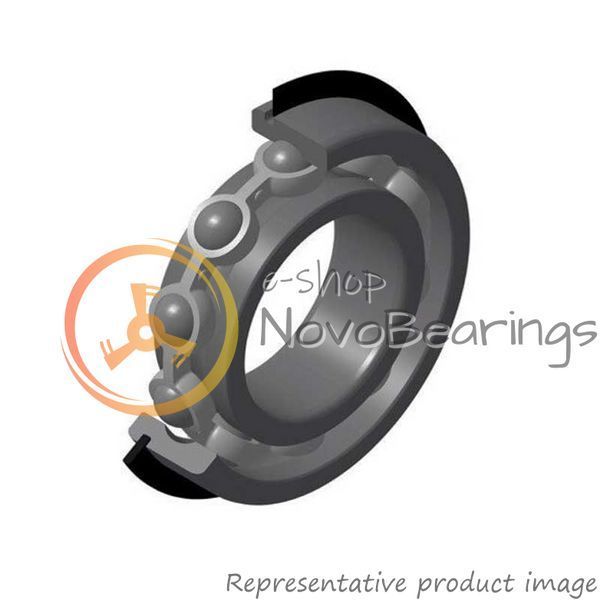

Single row open deep groove ball bearing SNR 6205NR with a groove and a retaining ring on the outer ring.

The maximum rotation speed is 12000 rpm. Design dynamic load 14 kN, design static load 7.9 kN.
