  • 6205LTZZ SNR Bearing (25х52х15 mm.)
  • 6205LTZZ SNR Bearing (25х52х15 mm.)
  • 6205LTZZ SNR Bearing (25х52х15 mm.)
Features
Brand SNR
Designation 6205LTZZ

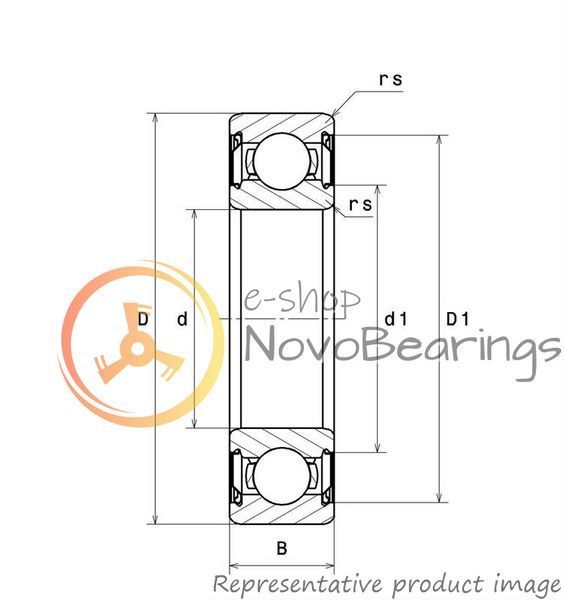

Dimensions [d x D x W] 25х52х15 mm.
Bore diameter (d) 0.984 in. / 25 mm.
Outside diameter (D) 2.047 in. / 52 mm.
Width (B) 0.591 in. / 15 mm.
Weight 0.059 lbs. / 0.13 kg.
Sealing Shield on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

Single row sealed low-temperature deep groove ball bearing SNR 6205LTZZ series TOPLINE for use in extremely low temperatures down to -60°C.

The maximum rotation speed is 17,000 rpm. Design dynamic load 13.8 kN, design static load 7.9 kN.

Does not require re-lubrication throughout its service life.
Adapted for operation in conditions of low temperature and high specific humidity thanks to specially selected lubricant. Used in agricultural and refrigeration equipment, food industry, and rope lifts.

A new review or comment
Sign in with
Rate this item
Share

6205LTZZ SNR Bearing (25х52х15 mm.)

Out of stock
SKU: 6205LTZZSNR25X52X15!#_
Price upon request
