  • 6205FT150 SNR Bearing (25х52х15 mm.)
  • 6205FT150 SNR Bearing (25х52х15 mm.)
  • 6205FT150 SNR Bearing (25х52х15 mm.)
Features
Brand SNR
Designation 6205FT150
Dimensions [d x D x W] 25х52х15 mm.
Bore diameter (d) 0.984 in. / 25 mm.
Outside diameter (D) 2.047 in. / 52 mm.
Width (B) 0.591 in. / 15 mm.
Weight 0.059 lbs. / 0.13 kg.
Sealing Seal on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

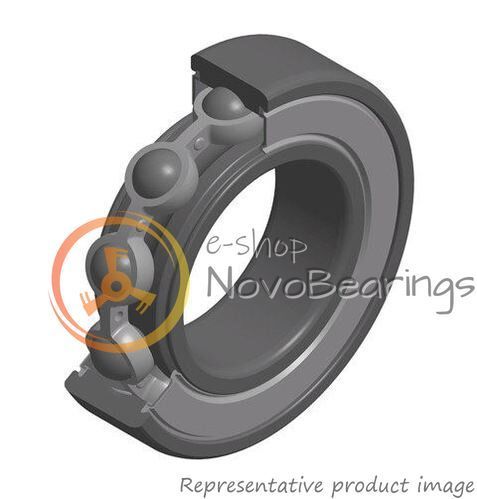

Single row sealed high-temperature deep groove ball bearing SNR 6205FT150 series TOPLINE for use at high temperatures up to +150°C.

Limit rotation speed 9000 rpm. Design dynamic load 13.8 kN, design static load 7.79 kN.

Does not require re-lubrication throughout its service life.
Adapted for use at high temperatures, for example in fans, electric motors and conveyors. Special lubricant ensures a maximum operating temperature of +150°C (at peak).
