  • 6200ZZC3EMTR SNR Bearing (10х30х9 mm.)
  • 6200ZZC3EMTR SNR Bearing (10х30х9 mm.)
  • 6200ZZC3EMTR SNR Bearing (10х30х9 mm.)
Features
Brand SNR
Designation 6200ZZC3EMTR

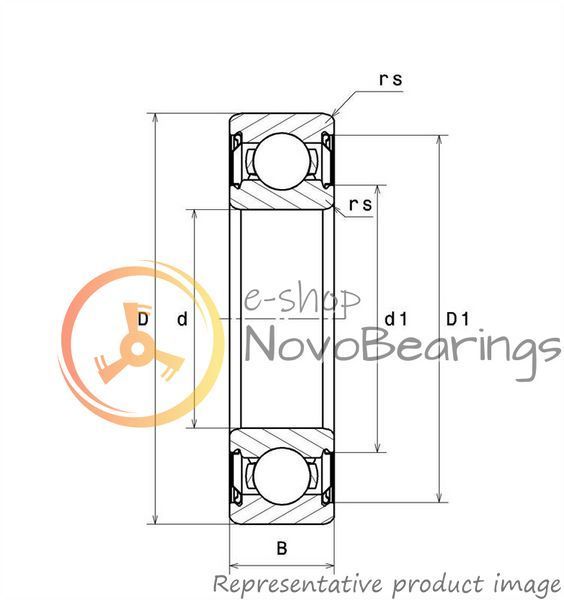

Dimensions [d x D x W] 10х30х9 mm.
Bore diameter (d) 0.394 in. / 10 mm.
Outside diameter (D) 1.181 in. / 30 mm.
Width (B) 0.354 in. / 9 mm.
Weight 0.0136 lbs. / 0.03 kg.
Sealing Shield on both sides
Bearing Material Bearing steel
Cage Polymer
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

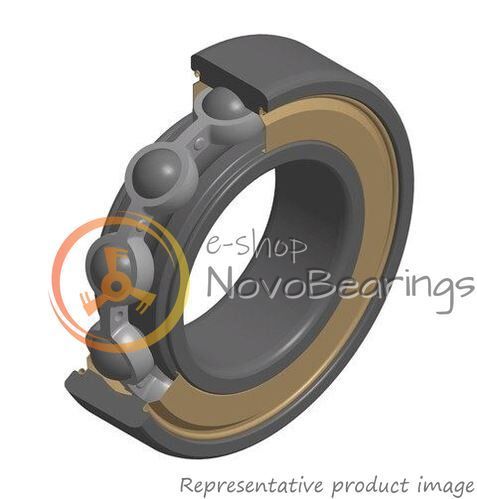

Single row sealed deep groove ball bearing SNR 6200ZZC3EMTR for electric motors.

The maximum rotation speed is 23000 rpm. Design dynamic load 6 kN, design static load 2.65 kN.

Does not require re-lubrication throughout its service life.
Low-noise series for electric motors with increased service life and reduced friction torque.
Increased internal radial clearance C3, can be designated 6200ZZJ30EMTR

A new review or comment
Sign in with
Rate this item
Share

6200ZZC3EMTR SNR Bearing (10х30х9 mm.)

Out of stock
SKU: 6200ZZC3EMTRSNR10X30X9!#_
Price upon request
