Features

Brand	SNR
Designation	61809.2RSY

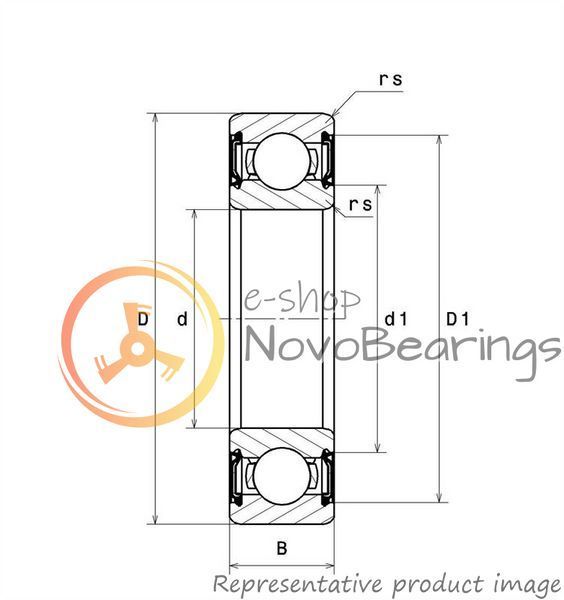

Dimensions [d x D x W]	45х58х7 mm.
Bore diameter (d)	1.772 in. / 45 mm.
Outside diameter (D)	2.283 in. / 58 mm.
Width (B)	0.276 in. / 7 mm.
Weight	0.0177 lbs. / 0.039 kg.
Sealing	Seal on both sides
Bearing Material	Bearing steel
Cage	Sheet metal
Radial internal clearance	Normal
Tolerance class	Normal
Number of rows	1
Outer ring type	Cylindrical
Bore type	Cylindrical
Series	Metric

Description

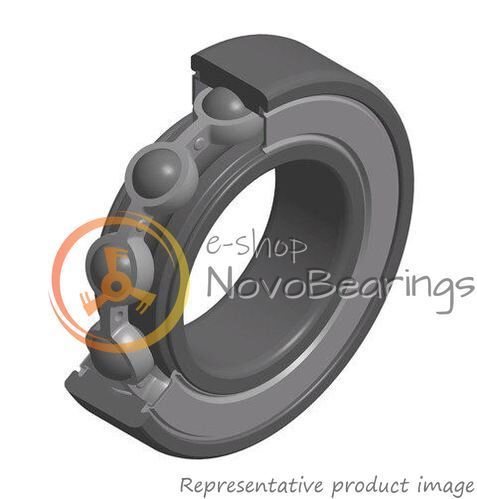

Single row sealed deep groove ball bearing SNR 61809.2RSY.

Limit rotation speed 5800 rpm. Design dynamic load 6.6 kN, design static load 5.9 kN.

Does not require re-lubrication throughout its service life.
