  • 609ZZC3 SNR Bearing (9х24х7 mm.)
  • 609ZZC3 SNR Bearing (9х24х7 mm.)
Features
Brand SNR
Designation 609ZZC3

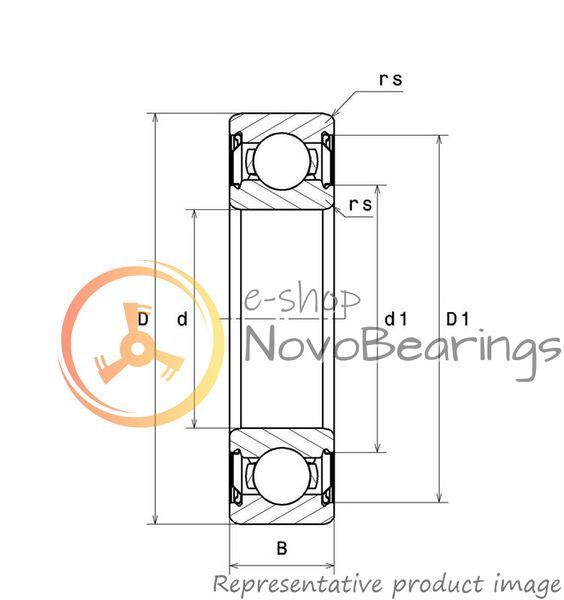

Dimensions [d x D x W] 9х24х7 mm.
Bore diameter (d) 0.354 in. / 9 mm.
Outside diameter (D) 0.945 in. / 24 mm.
Width (B) 0.276 in. / 7 mm.
Weight 0.0045 lbs. / 0.01 kg.
Sealing Shield on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

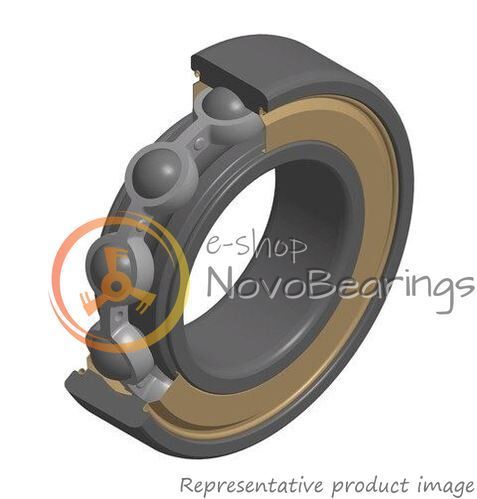

Single row sealed deep groove ball bearing SNR 609ZZC3.

Limit rotation speed 30,000 rpm. Design dynamic load 3.65 kN, design static load 1.64 kN.

Does not require re-lubrication throughout its service life.
Increased internal radial clearance C3, can be designated 609ZZJ30
