  • 6009Z SNR Bearing (45х75х16 mm.)
  • 6009Z SNR Bearing (45х75х16 mm.)
  • 6009Z SNR Bearing (45х75х16 mm.)
Features
Brand SNR
Designation 6009Z

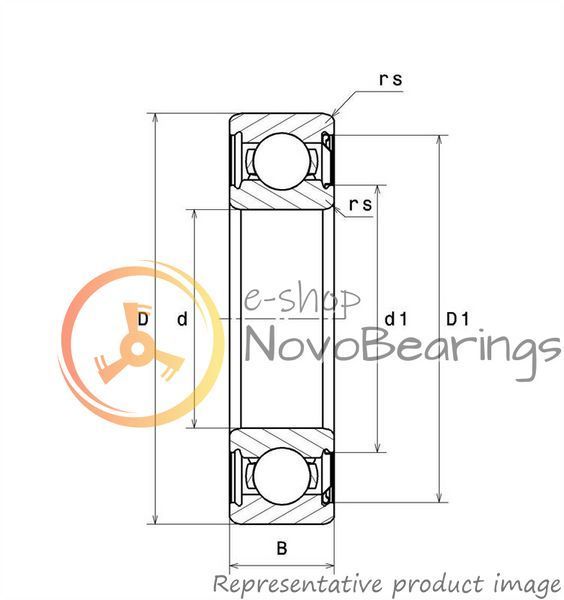

Dimensions [d x D x W] 45х75х16 mm.
Bore diameter (d) 1.772 in. / 45 mm.
Outside diameter (D) 2.953 in. / 75 mm.
Width (B) 0.63 in. / 16 mm.
Weight 0.1125 lbs. / 0.248 kg.
Sealing Shield on one side
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

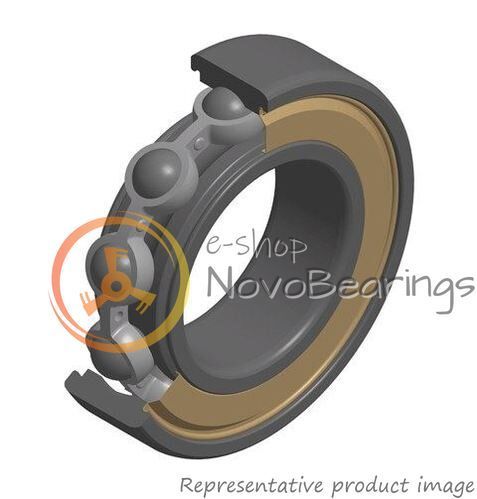

Single row semi-closed deep groove ball bearing SNR 6009Z.

Limit rotation speed 8300 rpm. Design dynamic load 21 kN, design static load 15.2 kN.

A new review or comment
Sign in with
Rate this item
Share

6009Z SNR Bearing (45х75х16 mm.)

Out of stock
SKU: 6009ZSNR45X75X16!#_
Price upon request
