  • 6003ZZ SNR Bearing (17х35х10 mm.)
  • 6003ZZ SNR Bearing (17х35х10 mm.)
  • 6003ZZ SNR Bearing (17х35х10 mm.)
Features
Brand SNR
Designation 6003ZZ

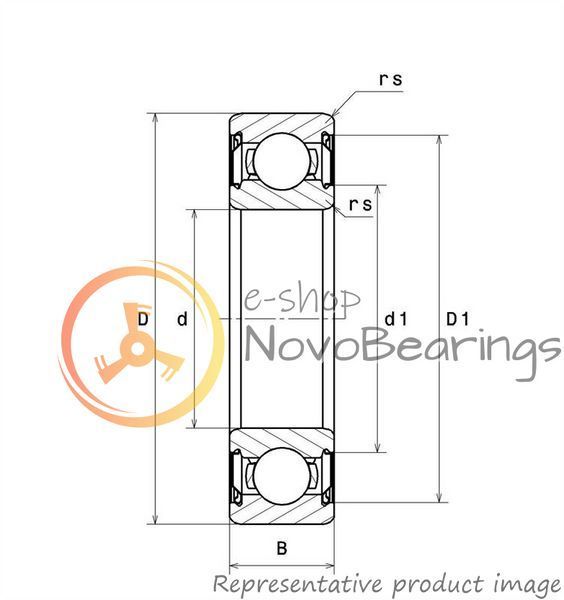

Dimensions [d x D x W] 17х35х10 mm.
Bore diameter (d) 0.669 in. / 17 mm.
Outside diameter (D) 1.378 in. / 35 mm.
Width (B) 0.394 in. / 10 mm.
Weight 0.0181 lbs. / 0.04 kg.
Sealing Shield on both sides
Bearing Material Bearing steel
Cage Sheet metal
Radial internal clearance Normal
Tolerance class Normal
Number of rows 1
Outer ring type Cylindrical
Bore type Cylindrical
Series Metric
Description

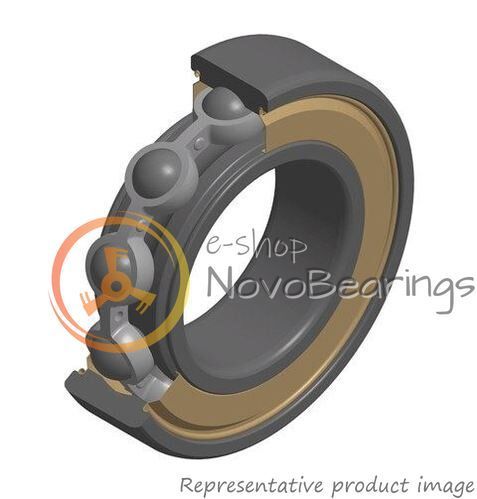

Single row sealed deep groove ball bearing SNR 6003ZZ.

Limit rotation speed 19000 rpm. Rated dynamic load 6 kN, rated static load 3.25 kN.

Does not require relubrication throughout its service life.

A new review or comment
Sign in with
Rate this item
Share

6003ZZ SNR Bearing (17х35х10 mm.)

Out of stock
SKU: 6003ZZSNR17X35X10!#_
Price upon request
