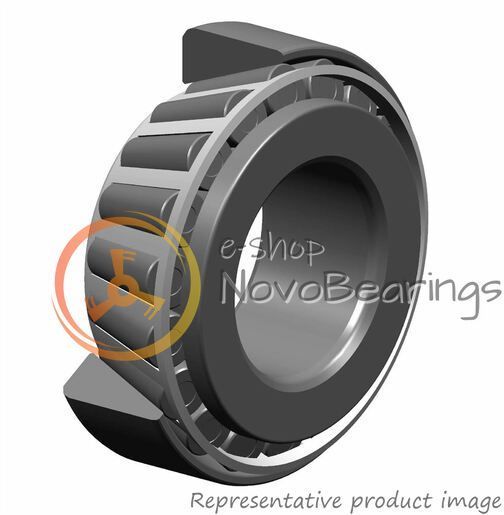

Single row open tapered roller bearing SNR 32014AP6X for cylindrical shafts. Steel cage, metric size series.
The maximum rotation speed is 6200 rpm. Design dynamic load 104 kN, design static load 160 kN. Operating temperature -40 °C to 120 °C
Outer ring width (B): 19 mm.
Inner ring width (C): 25 mm.
Total bearing width in assembly (T): 25 mm.
ISO 355 designation: T4CC070
Capable of supporting axial and radial loads as an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back or mirrored pattern.
