Single row open tapered roller bearing SNR 32009A for cylindrical shafts. Steel cage, metric size series.
The maximum rotation speed is 9400 rpm. Design dynamic load 59.5 kN, design static load 80.1 kN. Operating temperature -40°C to 120°C

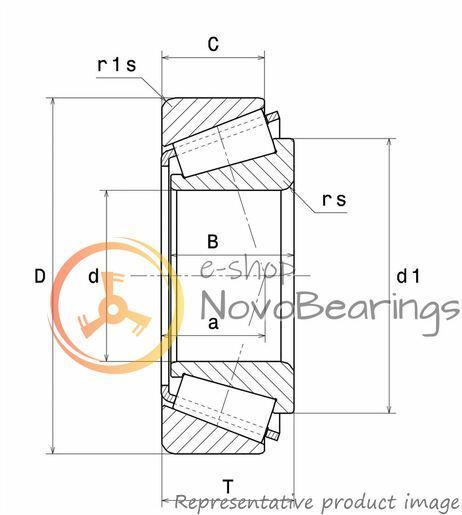

Outer ring width (B): 15.5 mm.
Inner ring width (C): 20 mm.
Overall width bearing assembly (T): 20 mm.
ISO 355 designation: T3CC045
Capable of supporting axial and radial loads as an angular contact bearing. The split design of tapered roller bearings allows the inner ring with rollers and cage to be installed separately from the outer (outer) ring. Often installed in pairs in a back-to-back or mirrored pattern.
