  • 29428E SNR Bearing (140х280х85 mm.)
  • 29428E SNR Bearing (140х280х85 mm.)
  • 29428E SNR Bearing (140х280х85 mm.)
  • 29428E SNR Bearing (140х280х85 mm.)
Features
Brand SNR
Designation 29428E
Dimensions [d x D x W] 140х280х85 mm.
Bore diameter (d) 5.512 in. / 140 mm.
Outside diameter (D) 11.024 in. / 280 mm.
Width (B) 3.346 in. / 85 mm.
Weight 10.4326 lbs. / 23 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

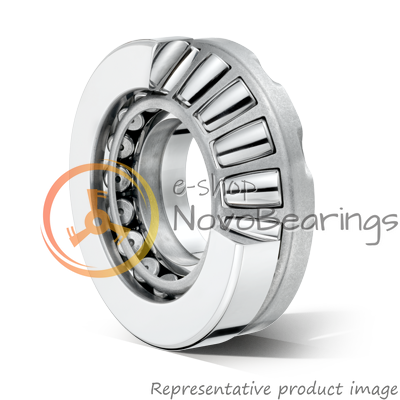

Single row open thrust spherical roller bearing SNR 29428E with increased load capacity. Steel cage, spherical raceways and asymmetrical rollers.

The maximum rotation speed is 2200 rpm. Design dynamic load 1420 kN, design static load 4500 kN.
Thanks to the optimized internal design and a large number of asymmetrical rollers, this bearing is able to absorb heavy axial loads and withstand relatively high rotation speeds. Well suited for use in extremely difficult conditions (vibration, shock, crushers, vibrating screens, etc.).
