  • 29330E SNR Bearing (150х250х60 mm.)
  • 29330E SNR Bearing (150х250х60 mm.)
  • 29330E SNR Bearing (150х250х60 mm.)
  • 29330E SNR Bearing (150х250х60 mm.)
Features
Brand SNR
Designation 29330E

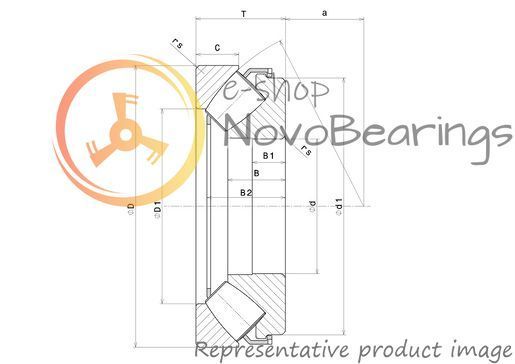

Dimensions [d x D x W] 150х250х60 mm.
Bore diameter (d) 5.906 in. / 150 mm.
Outside diameter (D) 9.843 in. / 250 mm.
Width (B) 2.362 in. / 60 mm.
Weight 4.9442 lbs. / 10.9 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 1
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

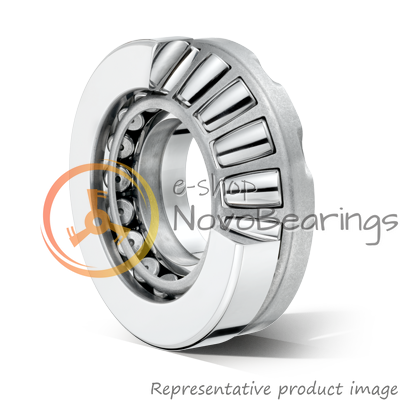

Single row open thrust spherical roller bearing SNR 29330E with increased load capacity. Steel cage, spherical raceways and asymmetrical rollers.

The maximum rotation speed is 2400 rpm. Design dynamic load 878 kN, design static load 2950 kN.
Thanks to the optimized internal design and a large number of asymmetrical rollers, this bearing is able to absorb heavy axial loads and withstand relatively high rotation speeds. Well suited for use in extremely difficult conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

29330E SNR Bearing (150х250х60 mm.)

Out of stock
SKU: 29330ESNR150X250X60!#_
Price upon request
