  • 24136EAW33C3 SNR Bearing (180х300х118 mm.)
  • 24136EAW33C3 SNR Bearing (180х300х118 mm.)
  • 24136EAW33C3 SNR Bearing (180х300х118 mm.)
Features
Brand SNR
Designation 24136EAW33C3

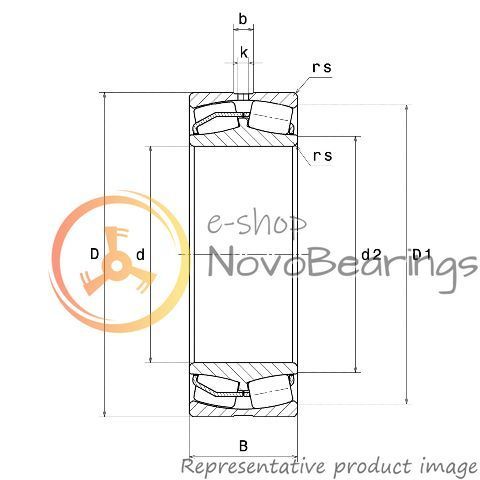

Dimensions [d x D x W] 180х300х118 mm.
Bore diameter (d) 7.087 in. / 180 mm.
Outside diameter (D) 11.811 in. / 300 mm.
Width (B) 4.646 in. / 118 mm.
Weight 15.3768 lbs. / 33.9 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

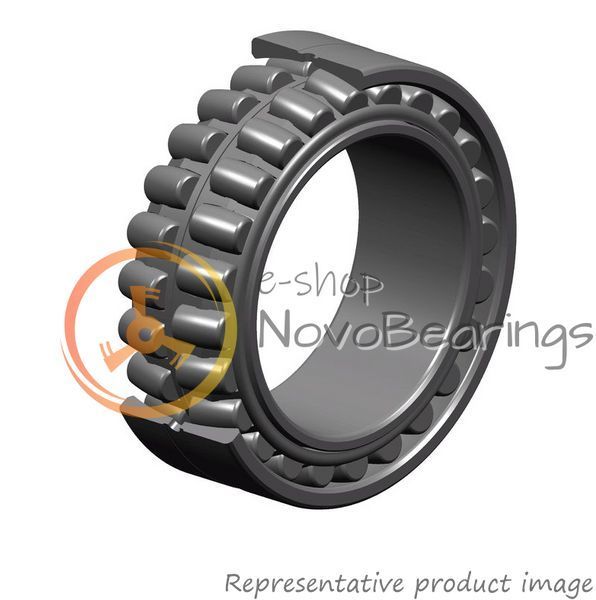

Double-row open spherical roller bearing SNR 24136EAW33C3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1700 rpm. Design dynamic load 1550 kN, design static load 2050 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
