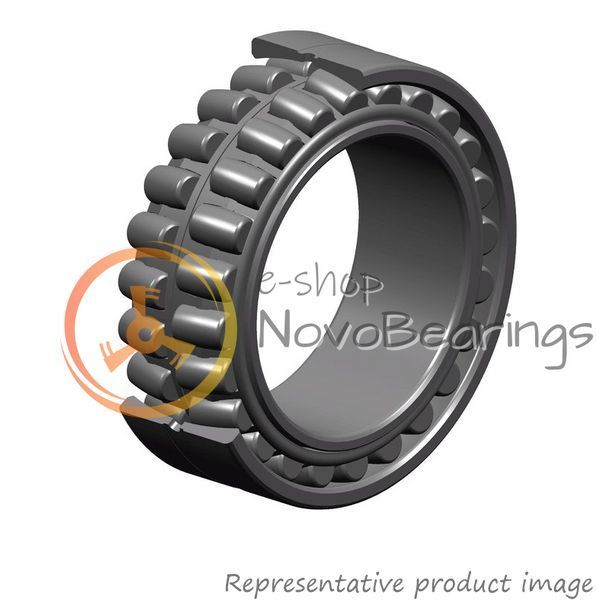

  • 24132EAW33C3 SNR Bearing (160х270х109 mm.)
  • 24132EAW33C3 SNR Bearing (160х270х109 mm.)
  • 24132EAW33C3 SNR Bearing (160х270х109 mm.)
Features
Brand SNR
Designation 24132EAW33C3

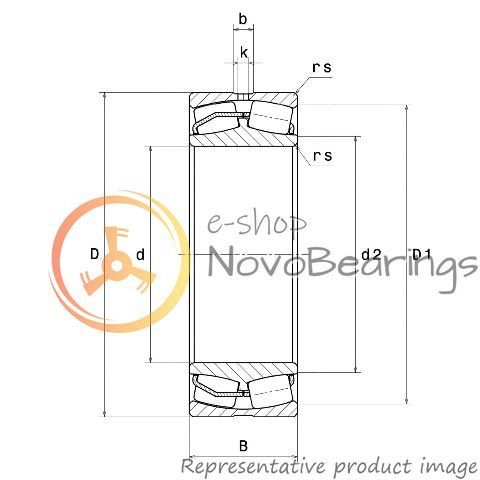

Dimensions [d x D x W] 160х270х109 mm.
Bore diameter (d) 6.299 in. / 160 mm.
Outside diameter (D) 10.63 in. / 270 mm.
Width (B) 4.291 in. / 109 mm.
Weight 11.612 lbs. / 25.6 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

Double-row open spherical roller bearing SNR 24132EAW33C3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1900 rpm. Design dynamic load 1330 kN, design static load 1740 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
