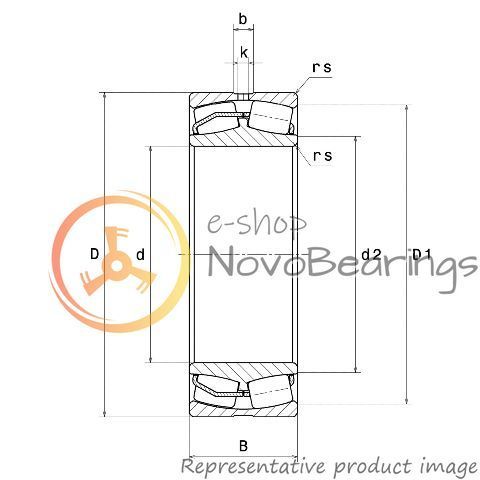

  • 24130EAW33C3 SNR Bearing (150х250х100 mm.)
  • 24130EAW33C3 SNR Bearing (150х250х100 mm.)
  • 24130EAW33C3 SNR Bearing (150х250х100 mm.)
Features
Brand SNR
Designation 24130EAW33C3
Dimensions [d x D x W] 150х250х100 mm.
Bore diameter (d) 5.906 in. / 150 mm.
Outside diameter (D) 9.843 in. / 250 mm.
Width (B) 3.937 in. / 100 mm.
Weight 9.0265 lbs. / 19.9 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

Double-row open spherical roller bearing SNR 24130EAW33C3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

Limit rotation speed 2000 rpm. Design dynamic load 1120 kN, design static load 1400 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

24130EAW33C3 SNR Bearing (150х250х100 mm.)

Out of stock
SKU: 24130EAW33C3SNR150X250X100!#_
Price upon request
