  • 24128EAW33C3 SNR Bearing (140х225х85 mm.)
  • 24128EAW33C3 SNR Bearing (140х225х85 mm.)
  • 24128EAW33C3 SNR Bearing (140х225х85 mm.)

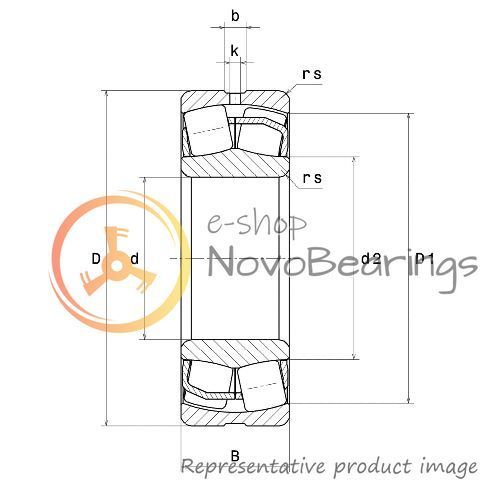

Features
Brand SNR
Designation 24128EAW33C3
Dimensions [d x D x W] 140х225х85 mm.
Bore diameter (d) 5.512 in. / 140 mm.
Outside diameter (D) 8.858 in. / 225 mm.
Width (B) 3.346 in. / 85 mm.
Weight 5.7924 lbs. / 12.77 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

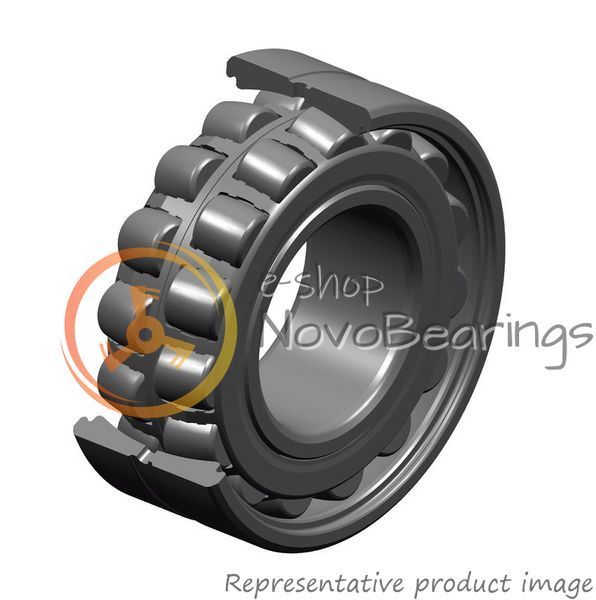

Double-row open spherical roller bearing SNR 24128EAW33C3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2300 rpm. Design dynamic load 951 kN, design static load 1280 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
