  • 24122EAW33 SNR Bearing (110х180х69 mm.)
  • 24122EAW33 SNR Bearing (110х180х69 mm.)
  • 24122EAW33 SNR Bearing (110х180х69 mm.)
Features
Brand SNR
Designation 24122EAW33

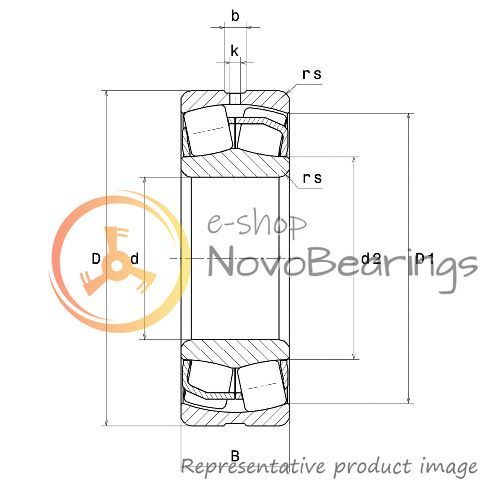

Dimensions [d x D x W] 110х180х69 mm.
Bore diameter (d) 4.331 in. / 110 mm.
Outside diameter (D) 7.087 in. / 180 mm.
Width (B) 2.717 in. / 69 mm.
Weight 3.03 lbs. / 6.68 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

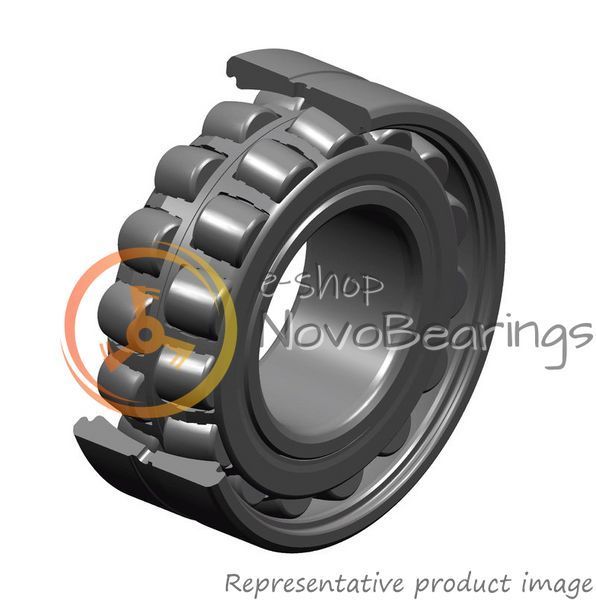

Double-row open spherical roller bearing SNR 24122EAW33 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2900 rpm. Design dynamic load 622 kN, design static load 769 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

24122EAW33 SNR Bearing (110х180х69 mm.)

Out of stock
SKU: 24122EAW33SNR110X180X69!#_
Price upon request
