  • 24056EMW33C3 SNR Bearing (280х420х140 mm.)
  • 24056EMW33C3 SNR Bearing (280х420х140 mm.)
  • 24056EMW33C3 SNR Bearing (280х420х140 mm.)
Features
Brand SNR
Designation 24056EMW33C3

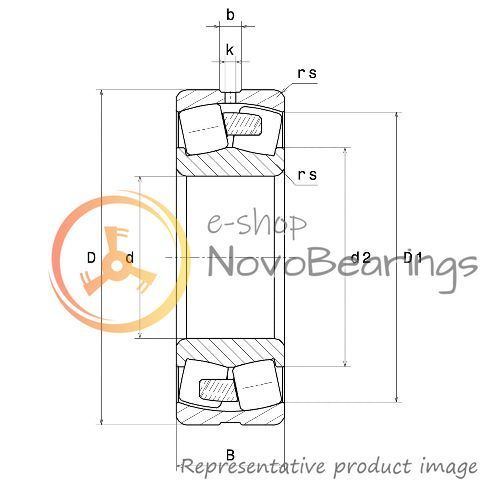

Dimensions [d x D x W] 280х420х140 mm.
Bore diameter (d) 11.024 in. / 280 mm.
Outside diameter (D) 16.535 in. / 420 mm.
Width (B) 5.512 in. / 140 mm.
Weight 29.9371 lbs. / 66 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

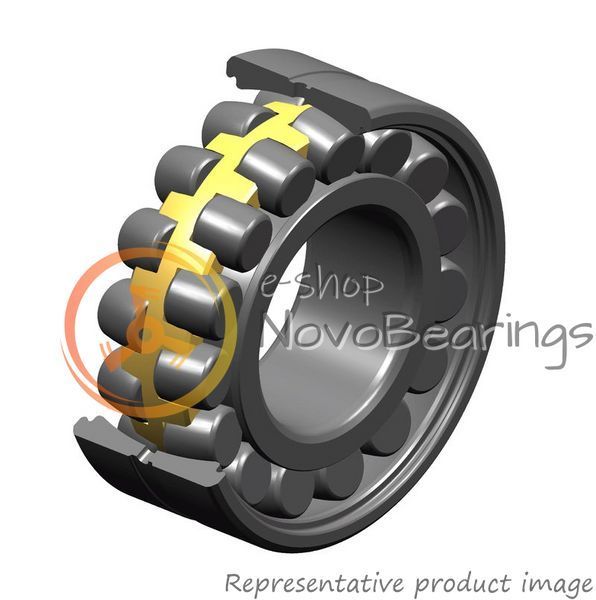

Double-row open spherical roller bearing SNR 24056EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1500 rpm. Design dynamic load 2720 kN, design static load 4120 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
