  • 24038EMW33 SNR Bearing (190х290х100 mm.)
  • 24038EMW33 SNR Bearing (190х290х100 mm.)
  • 24038EMW33 SNR Bearing (190х290х100 mm.)
Features
Brand SNR
Designation 24038EMW33

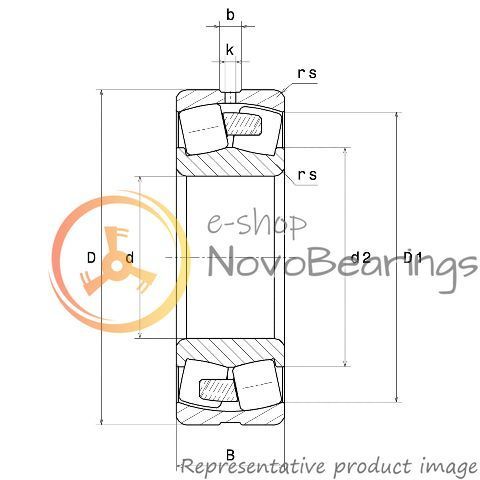

Dimensions [d x D x W] 190х290х100 mm.
Bore diameter (d) 7.48 in. / 190 mm.
Outside diameter (D) 11.417 in. / 290 mm.
Width (B) 3.937 in. / 100 mm.
Weight 10.2194 lbs. / 22.53 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

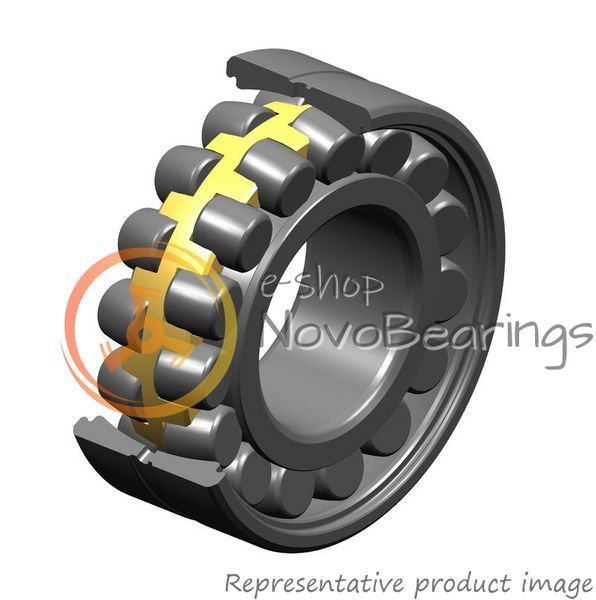

Double-row open spherical roller bearing SNR 24038EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2100 rpm. Design dynamic load 1310 kN, design static load 1800 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

24038EMW33 SNR Bearing (190х290х100 mm.)

Out of stock
SKU: 24038EMW33SNR190X290X100!#_
Price upon request
