  • 24036EAW33C5 SNR Bearing (180х280х100 mm.)
  • 24036EAW33C5 SNR Bearing (180х280х100 mm.)
  • 24036EAW33C5 SNR Bearing (180х280х100 mm.)
Features
Brand SNR
Designation 24036EAW33C5
Dimensions [d x D x W] 180х280х100 mm.
Bore diameter (d) 7.087 in. / 180 mm.
Outside diameter (D) 11.024 in. / 280 mm.
Width (B) 3.937 in. / 100 mm.
Weight 10.3873 lbs. / 22.9 kg.
Sealing Without / Open
Radial internal clearance Greater than C4 (C5)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

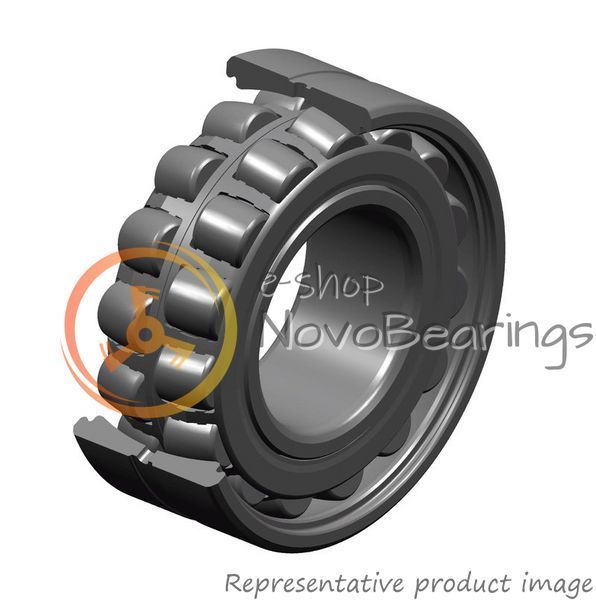

Double-row open spherical roller bearing SNR 24036EAW33C5 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2200 rpm. Design dynamic load 1270 kN, design static load 1830 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
