  • 24032EAW33C5 SNR Bearing (160х240х80 mm.)
  • 24032EAW33C5 SNR Bearing (160х240х80 mm.)
  • 24032EAW33C5 SNR Bearing (160х240х80 mm.)
Features
Brand SNR
Designation 24032EAW33C5

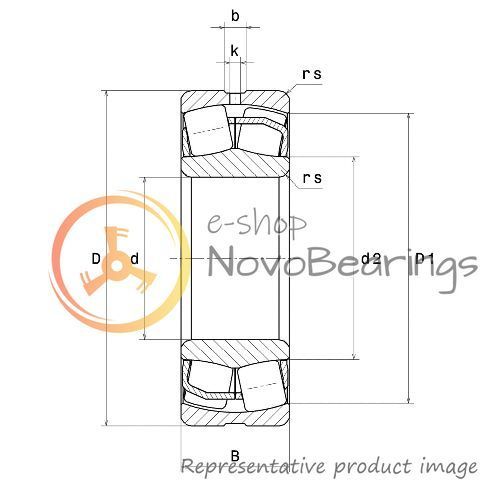

Dimensions [d x D x W] 160х240х80 mm.
Bore diameter (d) 6.299 in. / 160 mm.
Outside diameter (D) 9.449 in. / 240 mm.
Width (B) 3.15 in. / 80 mm.
Weight 5.3705 lbs. / 11.84 kg.
Sealing Without / Open
Radial internal clearance Greater than C4 (C5)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

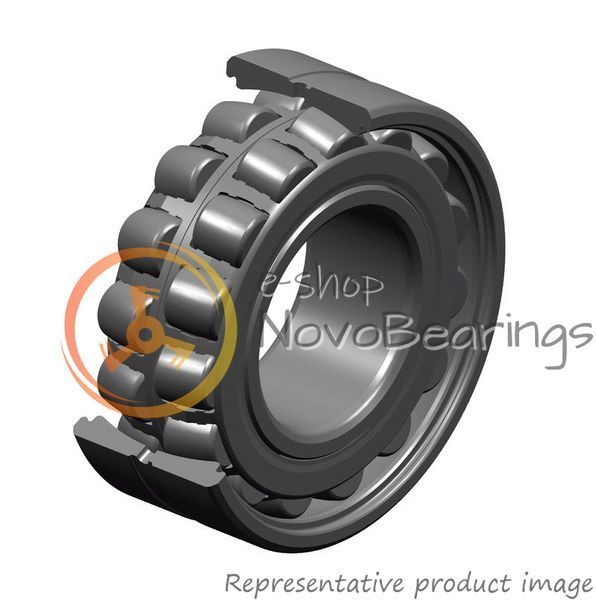

Double-row open spherical roller bearing SNR 24032EAW33C5 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2600 rpm. Design dynamic load 953 kN, design static load 1320 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

24032EAW33C5 SNR Bearing (160х240х80 mm.)

Out of stock
SKU: 24032EAW33C5SNR160X240X80!#_
Price upon request
