  • 24030EAW33C3 SNR Bearing (150х225х75 mm.)
  • 24030EAW33C3 SNR Bearing (150х225х75 mm.)
  • 24030EAW33C3 SNR Bearing (150х225х75 mm.)
Features
Brand SNR
Designation 24030EAW33C3

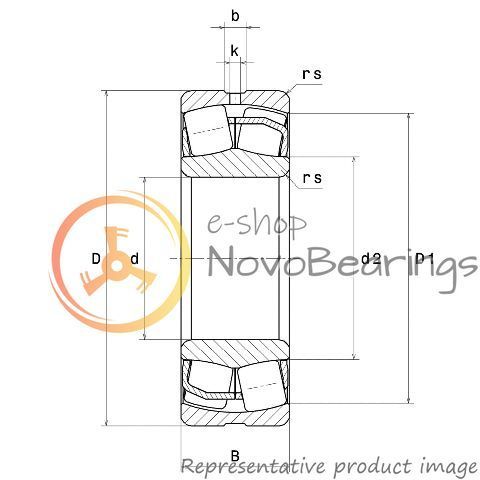

Dimensions [d x D x W] 150х225х75 mm.
Bore diameter (d) 5.906 in. / 150 mm.
Outside diameter (D) 8.858 in. / 225 mm.
Width (B) 2.953 in. / 75 mm.
Weight 4.5541 lbs. / 10.04 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

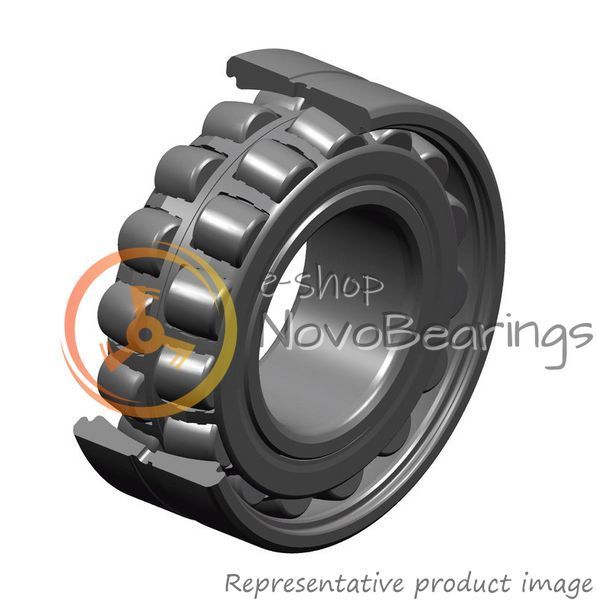

Double-row open spherical roller bearing SNR 24030EAW33C3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2700 rpm. Design dynamic load 832 kN, design static load 1140 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

24030EAW33C3 SNR Bearing (150х225х75 mm.)

Out of stock
SKU: 24030EAW33C3SNR150X225X75!#_
Price upon request
