  • 24028EAW33C3 SNR Bearing (140х210х69 mm.)
  • 24028EAW33C3 SNR Bearing (140х210х69 mm.)
  • 24028EAW33C3 SNR Bearing (140х210х69 mm.)
Features
Brand SNR
Designation 24028EAW33C3

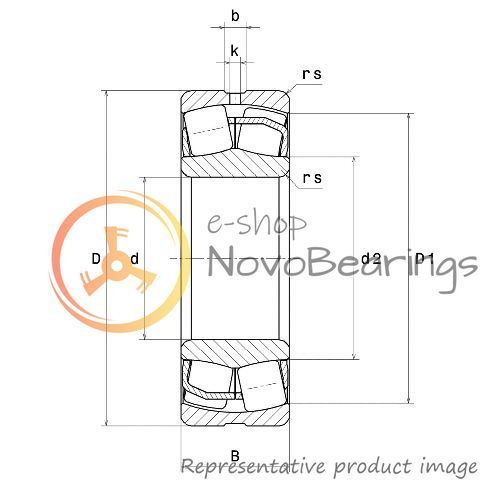

Dimensions [d x D x W] 140х210х69 mm.
Bore diameter (d) 5.512 in. / 140 mm.
Outside diameter (D) 8.268 in. / 210 mm.
Width (B) 2.717 in. / 69 mm.
Weight 3.6424 lbs. / 8.03 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

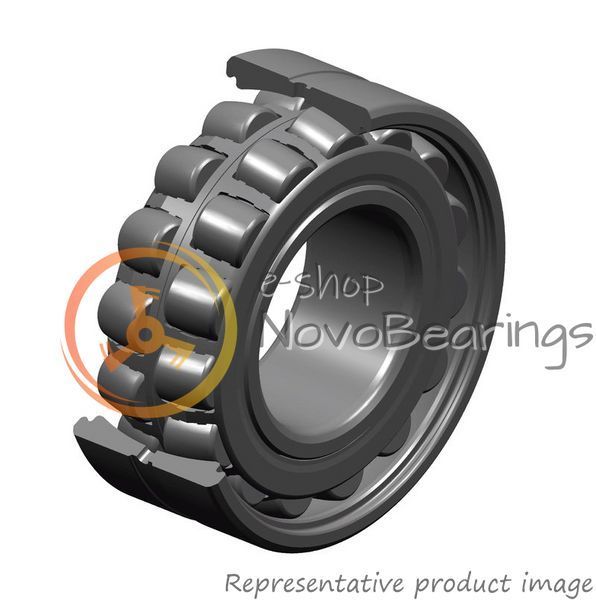

Double-row open spherical roller bearing SNR 24028EAW33C3 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2900 rpm. Design dynamic load 704 kN, design static load 958 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
