  • 24024EAW33 SNR Bearing (120х180х60 mm.)
  • 24024EAW33 SNR Bearing (120х180х60 mm.)
  • 24024EAW33 SNR Bearing (120х180х60 mm.)
Features
Brand SNR
Designation 24024EAW33

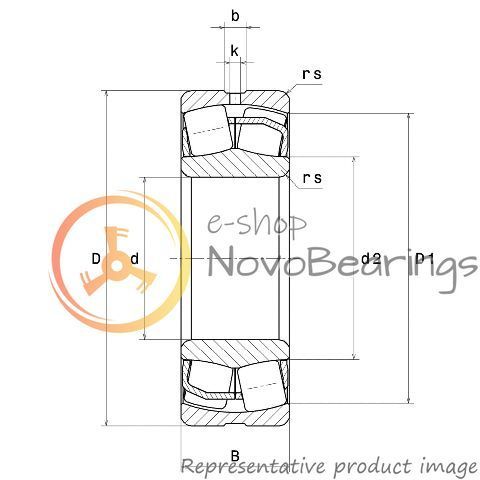

Dimensions [d x D x W] 120х180х60 mm.
Bore diameter (d) 4.724 in. / 120 mm.
Outside diameter (D) 7.087 in. / 180 mm.
Width (B) 2.362 in. / 60 mm.
Weight 2.3133 lbs. / 5.1 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

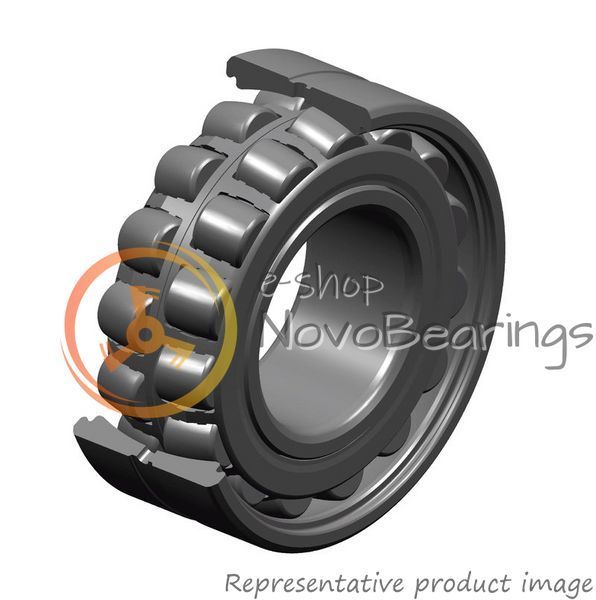

Double-row open spherical roller bearing SNR 24024EAW33 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 3400 rpm. Design dynamic load 535 kN, design static load 705 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
