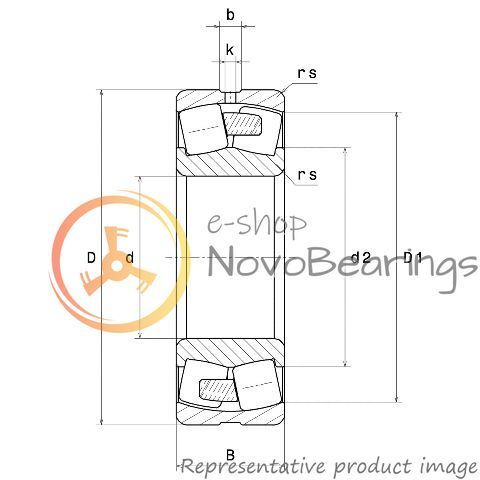

  • 23944EMW33C3 SNR Bearing (220х300х60 mm.)
  • 23944EMW33C3 SNR Bearing (220х300х60 mm.)
  • 23944EMW33C3 SNR Bearing (220х300х60 mm.)
Features
Brand SNR
Designation 23944EMW33C3
Dimensions [d x D x W] 220х300х60 mm.
Bore diameter (d) 8.661 in. / 220 mm.
Outside diameter (D) 11.811 in. / 300 mm.
Width (B) 2.362 in. / 60 mm.
Weight 5.6246 lbs. / 12.4 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

Double-row open spherical roller bearing SNR 23944EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2200 rpm. Design dynamic load 741 kN, design static load 1210 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
