  • 23238EMW33 SNR Bearing (190х340х120 mm.)
  • 23238EMW33 SNR Bearing (190х340х120 mm.)
  • 23238EMW33 SNR Bearing (190х340х120 mm.)
Features
Brand SNR
Designation 23238EMW33

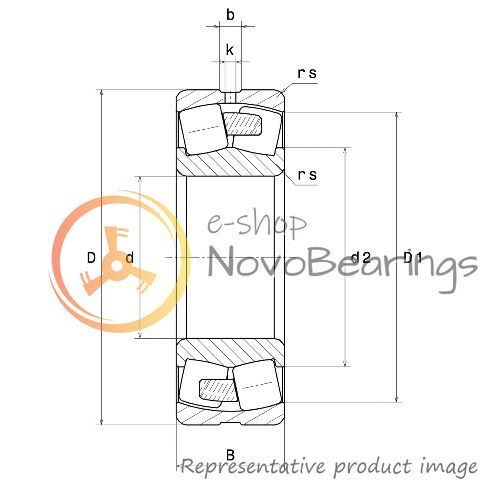

Dimensions [d x D x W] 190х340х120 mm.
Bore diameter (d) 7.48 in. / 190 mm.
Outside diameter (D) 13.386 in. / 340 mm.
Width (B) 4.724 in. / 120 mm.
Weight 20.8653 lbs. / 46 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

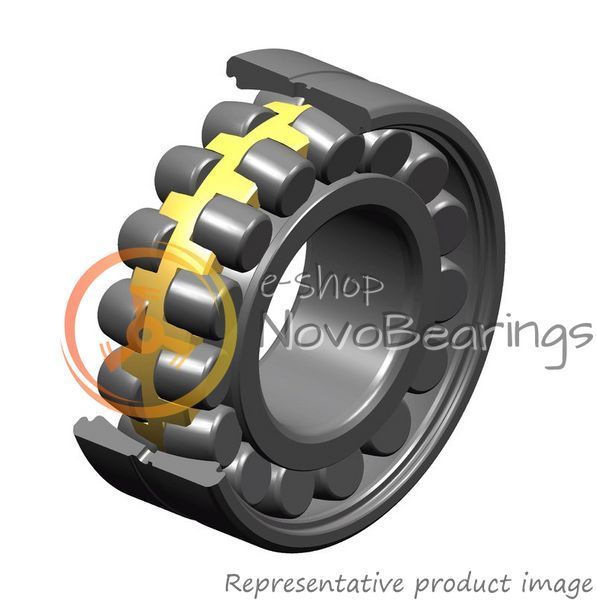

Double-row open spherical roller bearing SNR 23238EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1800 rpm. Design dynamic load 1990 kN, design static load 2480 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

23238EMW33 SNR Bearing (190х340х120 mm.)

Out of stock
SKU: 23238EMW33SNR190X340X120!#_
Price upon request
