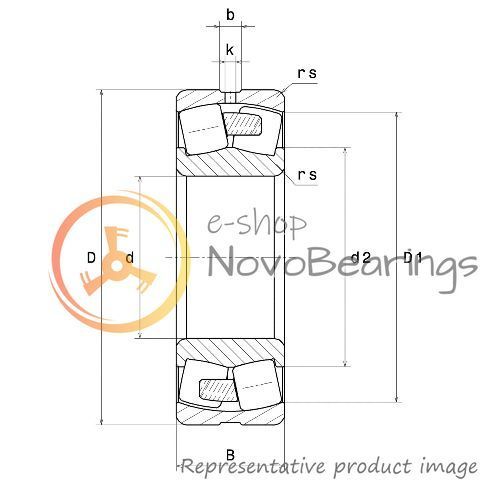

  • 23234EMW33C3 SNR Bearing (170х310х110 mm.)
  • 23234EMW33C3 SNR Bearing (170х310х110 mm.)
  • 23234EMW33C3 SNR Bearing (170х310х110 mm.)
Features
Brand SNR
Designation 23234EMW33C3
Dimensions [d x D x W] 170х310х110 mm.
Bore diameter (d) 6.693 in. / 170 mm.
Outside diameter (D) 12.205 in. / 310 mm.
Width (B) 4.331 in. / 110 mm.
Weight 16.1933 lbs. / 35.7 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

Double-row open spherical roller bearing SNR 23234EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1900 rpm. Design dynamic load 1700 kN, design static load 2070 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
