  • 23232EMW33 SNR Bearing (160х290х104 mm.)
  • 23232EMW33 SNR Bearing (160х290х104 mm.)
  • 23232EMW33 SNR Bearing (160х290х104 mm.)
Features
Brand SNR
Designation 23232EMW33

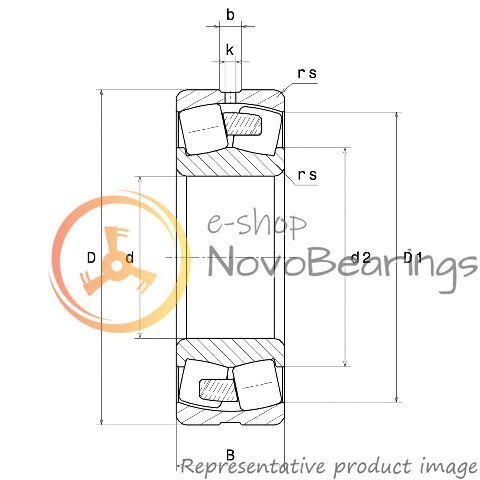

Dimensions [d x D x W] 160х290х104 mm.
Bore diameter (d) 6.299 in. / 160 mm.
Outside diameter (D) 11.417 in. / 290 mm.
Width (B) 4.094 in. / 104 mm.
Weight 13.4173 lbs. / 29.58 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

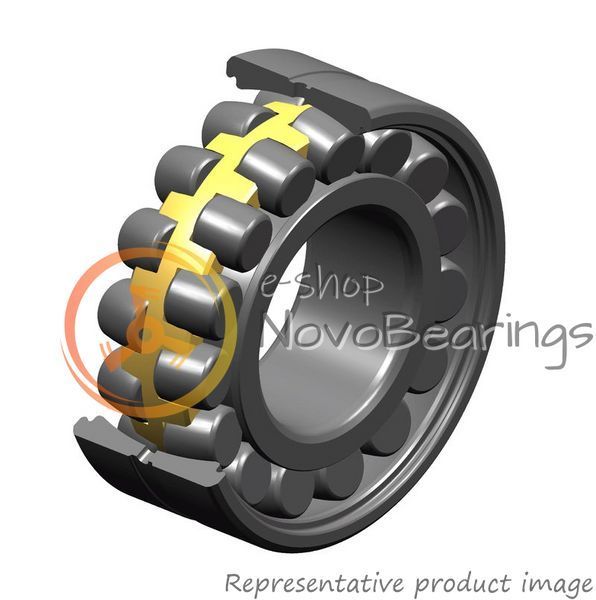

Double-row open spherical roller bearing SNR 23232EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2100 rpm. Design dynamic load 1550 kN, design static load 1890 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
