  • 23144EMW33C4 SNR Bearing (220х370х120 mm.)
  • 23144EMW33C4 SNR Bearing (220х370х120 mm.)
  • 23144EMW33C4 SNR Bearing (220х370х120 mm.)
Features
Brand SNR
Designation 23144EMW33C4

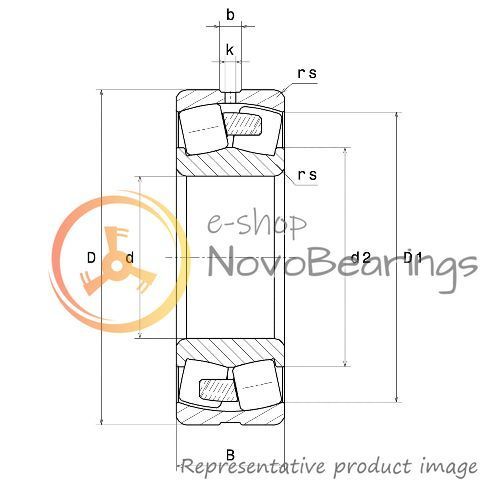

Dimensions [d x D x W] 220х370х120 mm.
Bore diameter (d) 8.661 in. / 220 mm.
Outside diameter (D) 14.567 in. / 370 mm.
Width (B) 4.724 in. / 120 mm.
Weight 23.6821 lbs. / 52.21 kg.
Sealing Without / Open
Radial internal clearance Greater than C3 (C4)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

Double-row open spherical roller bearing SNR 23144EMW33C4 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1700 rpm. Design dynamic load 2190 kN, design static load 2940 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

23144EMW33C4 SNR Bearing (220х370х120 mm.)

Out of stock
SKU: 23144EMW33C4SNR220X370X120!#_
Price upon request
