  • 23138EMW33C3 SNR Bearing (190х320х104 mm.)
  • 23138EMW33C3 SNR Bearing (190х320х104 mm.)
  • 23138EMW33C3 SNR Bearing (190х320х104 mm.)
Features
Brand SNR
Designation 23138EMW33C3
Dimensions [d x D x W] 190х320х104 mm.
Bore diameter (d) 7.48 in. / 190 mm.
Outside diameter (D) 12.598 in. / 320 mm.
Width (B) 4.094 in. / 104 mm.
Weight 15.1954 lbs. / 33.5 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

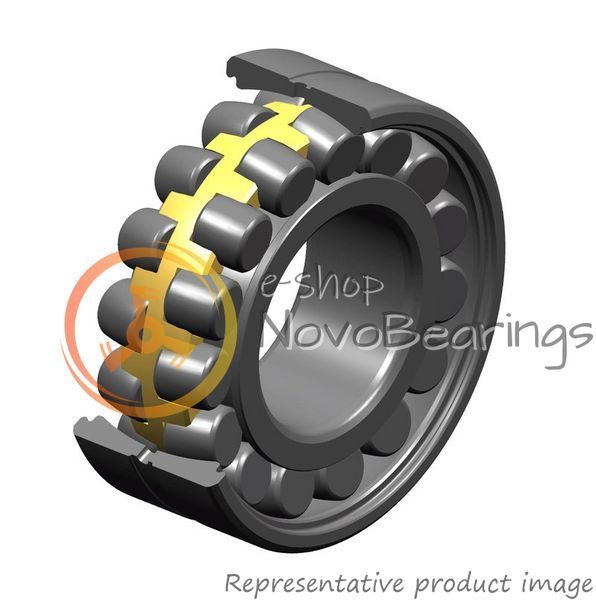

Double-row open spherical roller bearing SNR 23138EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

Limit rotation speed 2000 rpm. Design dynamic load 1670 kN, design static load 2250 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
