  • 23136EMW33 SNR Bearing (180х300х96 mm.)
  • 23136EMW33 SNR Bearing (180х300х96 mm.)
  • 23136EMW33 SNR Bearing (180х300х96 mm.)
Features
Brand SNR
Designation 23136EMW33
Dimensions [d x D x W] 180х300х96 mm.
Bore diameter (d) 7.087 in. / 180 mm.
Outside diameter (D) 11.811 in. / 300 mm.
Width (B) 3.78 in. / 96 mm.
Weight 12.3423 lbs. / 27.21 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

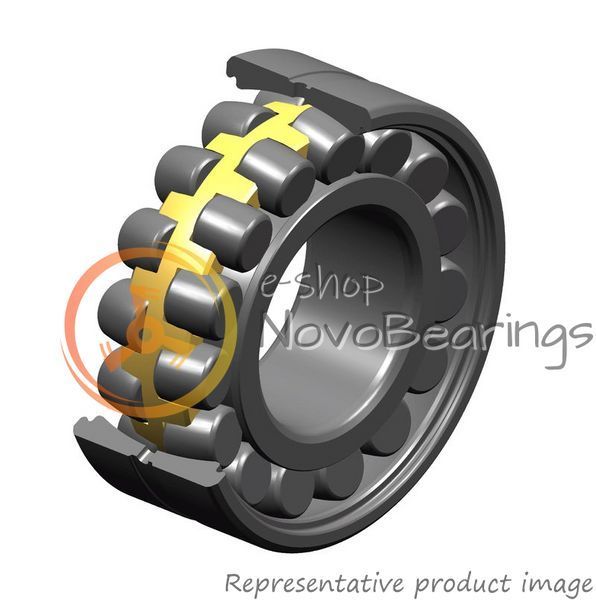

Double-row open spherical roller bearing SNR 23136EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2100 rpm. Design dynamic load 1490 kN, design static load 1960 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
