  • 23130EMW33 SNR Bearing (150х250х80 mm.)
  • 23130EMW33 SNR Bearing (150х250х80 mm.)
  • 23130EMW33 SNR Bearing (150х250х80 mm.)
Features
Brand SNR
Designation 23130EMW33

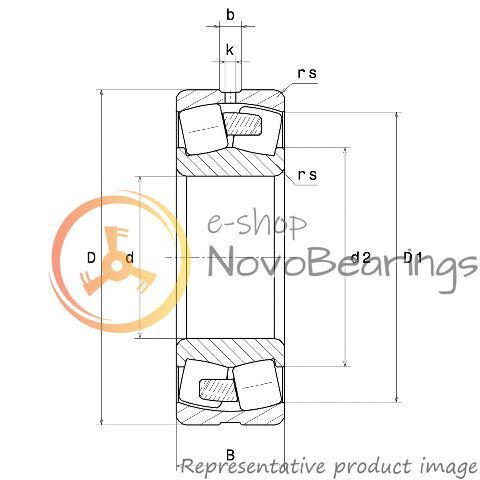

Dimensions [d x D x W] 150х250х80 mm.
Bore diameter (d) 5.906 in. / 150 mm.
Outside diameter (D) 9.843 in. / 250 mm.
Width (B) 3.15 in. / 80 mm.
Weight 7.1305 lbs. / 15.72 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

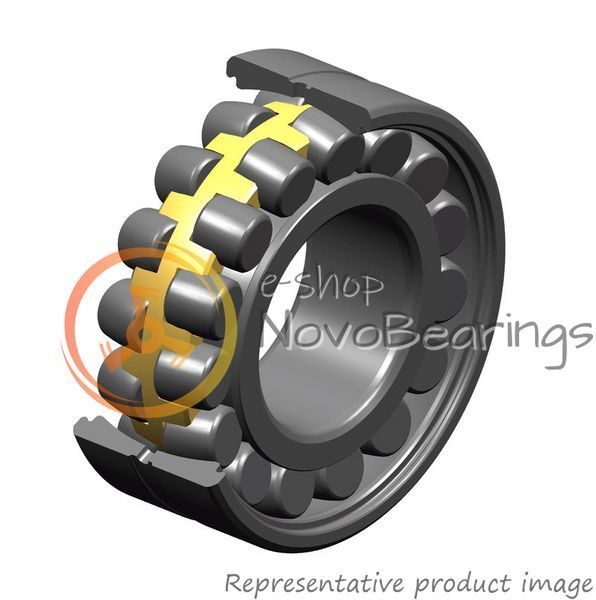

Double-row open spherical roller bearing SNR 23130EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 2600 rpm. Design dynamic load 1060 kN, design static load 1350 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

23130EMW33 SNR Bearing (150х250х80 mm.)

Out of stock
SKU: 23130EMW33SNR150X250X80!#_
Price upon request
