  • 23126EAW33C4 SNR Bearing (130х210х64 mm.)
  • 23126EAW33C4 SNR Bearing (130х210х64 mm.)
  • 23126EAW33C4 SNR Bearing (130х210х64 mm.)
Features
Brand SNR
Designation 23126EAW33C4

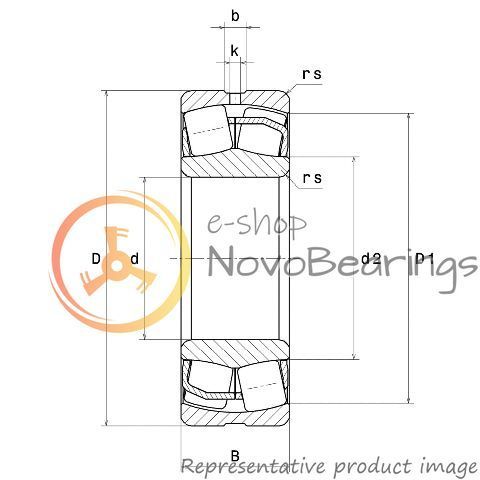

Dimensions [d x D x W] 130х210х64 mm.
Bore diameter (d) 5.118 in. / 130 mm.
Outside diameter (D) 8.268 in. / 210 mm.
Width (B) 2.52 in. / 64 mm.
Weight 3.8102 lbs. / 8.4 kg.
Sealing Without / Open
Radial internal clearance Greater than C3 (C4)
Tolerance class Normal
Bearing Material Bearing steel
Cage Sheet metal
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

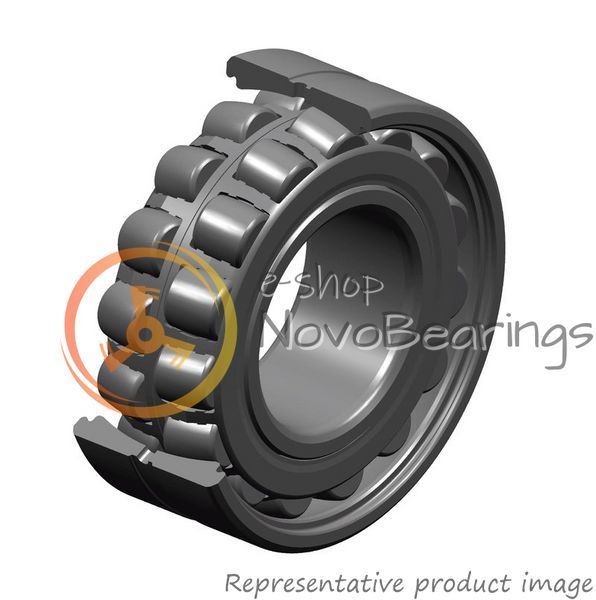

Double-row open spherical roller bearing SNR 23126EAW33C4 for cylindrical shafts. Steel cage, holes and lubrication groove on outer (outer) ring.

Limit rotation speed 3000 rpm. Design dynamic load 710 kN, design static load 906 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
