  • 23124EMW33C3 SNR Bearing (120х200х62 mm.)
  • 23124EMW33C3 SNR Bearing (120х200х62 mm.)
  • 23124EMW33C3 SNR Bearing (120х200х62 mm.)
Features
Brand SNR
Designation 23124EMW33C3
Dimensions [d x D x W] 120х200х62 mm.
Bore diameter (d) 4.724 in. / 120 mm.
Outside diameter (D) 7.874 in. / 200 mm.
Width (B) 2.441 in. / 62 mm.
Weight 3.5199 lbs. / 7.76 kg.
Sealing Without / Open
Radial internal clearance Greater than Normal (C3)
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

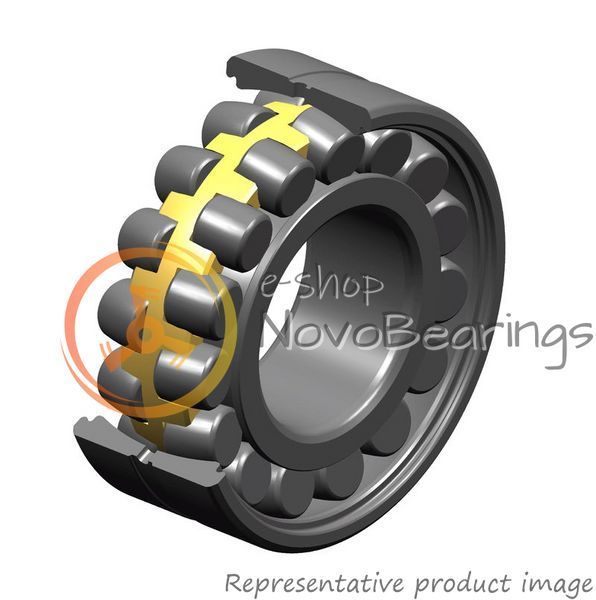

Double-row open spherical roller bearing SNR 23124EMW33C3 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 3200 rpm. Design dynamic load 663 kN, design static load 820 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
