  • 23120EMW33 SNR Bearing (100х165х52 mm.)
  • 23120EMW33 SNR Bearing (100х165х52 mm.)
  • 23120EMW33 SNR Bearing (100х165х52 mm.)
Features
Brand SNR
Designation 23120EMW33

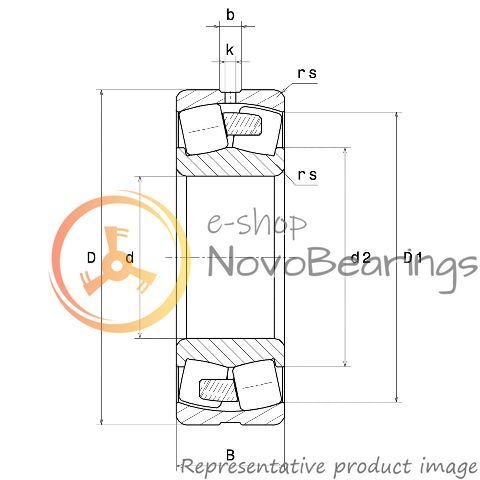

Dimensions [d x D x W] 100х165х52 mm.
Bore diameter (d) 3.937 in. / 100 mm.
Outside diameter (D) 6.496 in. / 165 mm.
Width (B) 2.047 in. / 52 mm.
Weight 2.268 lbs. / 5 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

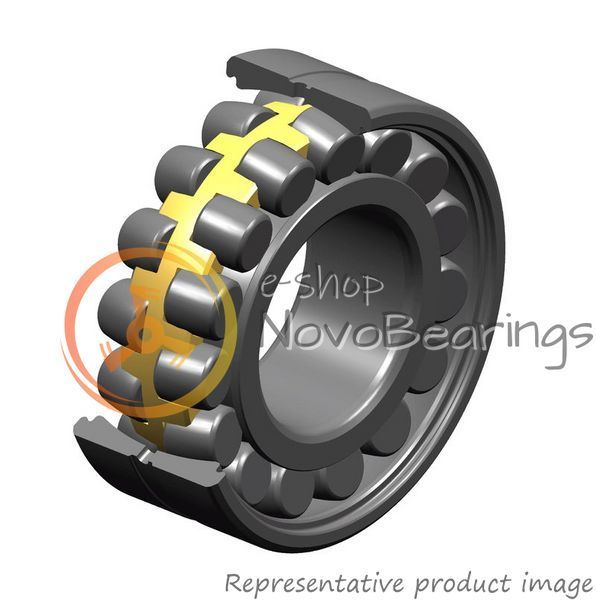

Double-row open spherical roller bearing SNR 23120EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 3900 rpm. Design dynamic load 471 kN, design static load 575 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).

A new review or comment
Sign in with
Rate this item
Share

23120EMW33 SNR Bearing (100х165х52 mm.)

Out of stock
SKU: 23120EMW33SNR100X165X52!#_
Price upon request
