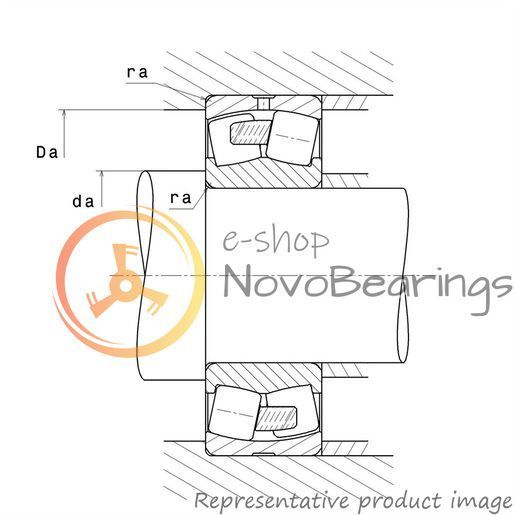

  • 23056EMW33 SNR Bearing (280х420х106 mm.)
  • 23056EMW33 SNR Bearing (280х420х106 mm.)
  • 23056EMW33 SNR Bearing (280х420х106 mm.)
Features
Brand SNR
Designation 23056EMW33

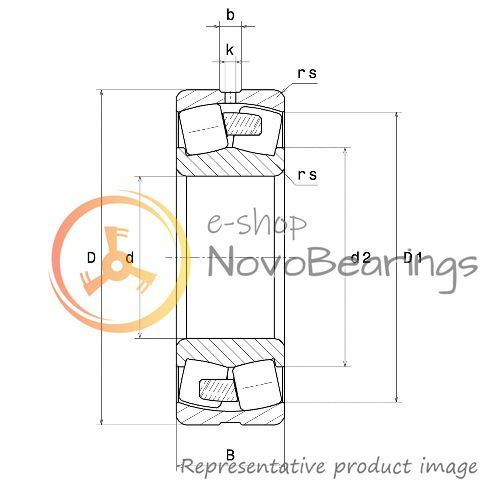

Dimensions [d x D x W] 280х420х106 mm.
Bore diameter (d) 11.024 in. / 280 mm.
Outside diameter (D) 16.535 in. / 420 mm.
Width (B) 4.173 in. / 106 mm.
Weight 23.224 lbs. / 51.2 kg.
Sealing Without / Open
Radial internal clearance Normal
Tolerance class Normal
Bearing Material Bearing steel
Cage Machined brass
Number of rows 2
Series Metric
Bore type Cylindrical
Outer ring type Cylindrical
Description

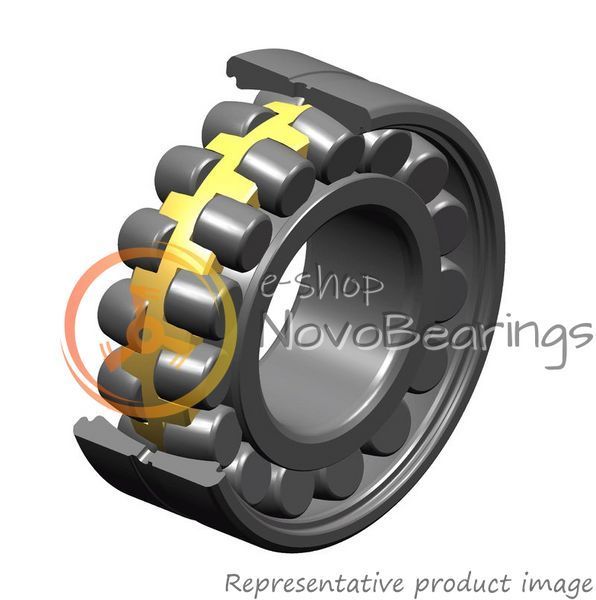

Double-row open spherical roller bearing SNR 23056EMW33 for cylindrical shafts. Solid brass cage, holes and lubrication groove on outer (outer) ring.

The maximum rotation speed is 1700 rpm. Design dynamic load 2170 kN, design static load 3150 kN.
Able to withstand significant radial loads and, due to its internal design, withstand axial distortions and misalignments. Well suited for use in harsh conditions (vibration, shock, crushers, vibrating screens, etc.).
